Power Your Projects with 0.6/1kV XLPE Cables: Unmatched Safety & Efficiency​

Power Your Projects with 0.6/1kV XLPE Cables: Unmatched Safety & Efficiency​​

​​XLPE (Cross-Linked Polyethylene) insulated power cables​​ are redefining electrical reliability for industrial, commercial, and renewable energy applications. Engineered to exceed global standards, our cables deliver ​​90°C continuous thermal stability​​, ​​flame-retardant safety​​, and ​​30% longer lifespan​​ than conventional PVC alternatives

 ​​Why Engineers Trust XLPE Technology​​

​​Molecular Cross-Linking​​ transforms polyethylene into a thermoset matrix, enabling:

• ​​Extreme Heat Resistance​​:
  • Continuous operation at ​​90°C​​ | Emergency load at ​​130°C​​ | Short-circuit survival at ​​250°C​​ (≤5 sec)

    .
• ​​Halogen-Free Safety​​:
  • FR-PVC sheath (IEC 60502 ST2) minimizes toxic smoke during fires, critical for tunnels and buildings

    .
• ​​Zero Water Absorption​​:
  • Prevents insulation degradation in humid environments

    .

​​Precision Engineering for Demanding Installations​​

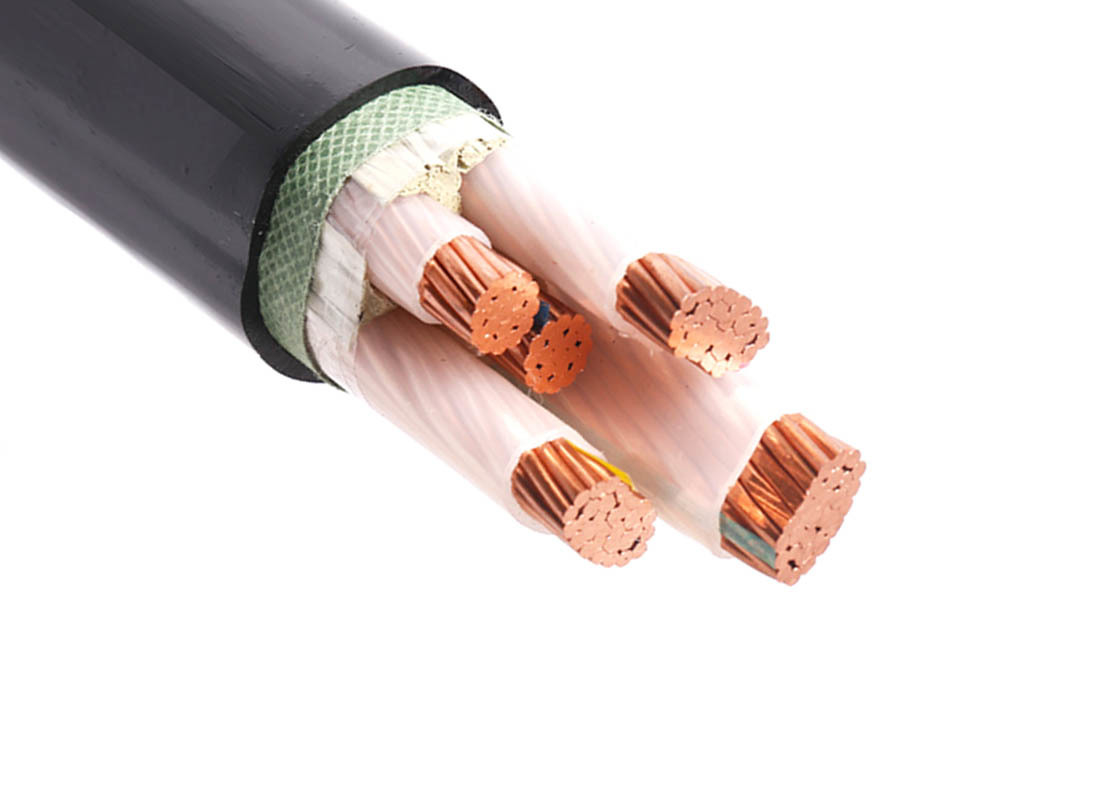

​​Triple-Layer Defense Architecture​​:

1. ​​Conductor​​: Oxygen-free copper (IEC 60228 Class 2) for 99.97% conductivity efficiency

   .
2. ​​Insulation​​: XLPE matrix with ​​25 kV/mm dielectric strength​​ – 3× higher than standard PE

   .
3. ​​Sheath​​: Black PVC/FR-PVC resisting UV, oils, and abrasion

   .

​​Smart Installation Flexibility​​:

• ​​Bend Radius​​: ​​15× cable OD​​ (multi-core) for tight spaces

  .
• ​​Ambient Temp. Range​​: ​​0°C+​​ (pre-heat required below 0°C)

  .
• ​​Magnetic Duct Warning​​: Single-core cables require non-ferrous ducts

  .

 ​​Global Compliance, Localized Reliability​​

​​Certifications That Matter​​:

• ​​Mandatory​​: CE, CCC, KEMA

  .
• ​​On-Demand​​: BS (UK), DIN (EU), ICEA (North America)

  .

​​Tested Beyond Standards​​:

• Partial discharge ​​<10pC​​ at 1.73U₀
• ​​100% compliance​​ with GB/T 12706 (China) & IEC 60502 (Int’l)

  .

 ​​Applications Where XLPE Excels​​
