Round Wire XLPE Insulated Power Cable for Low Voltage Applications in IEC 60502-1 Standard

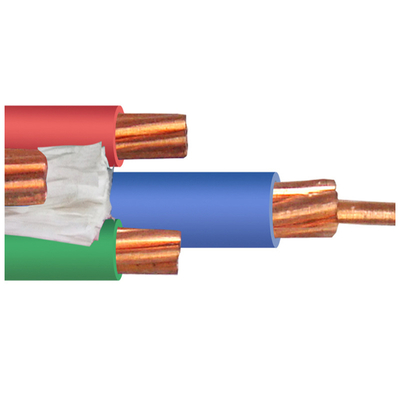

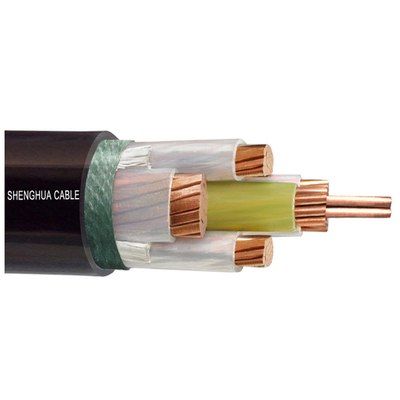

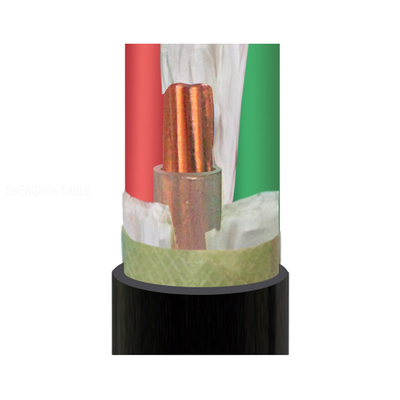

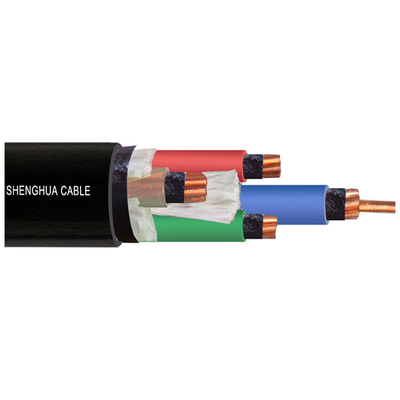

Large Image : Round Wire XLPE Insulated Power Cable for Low Voltage Applications in IEC 60502-1 Standard

Product Details:

Certification:	ISO, CCC, CE, Kema

Contact Now

Round Wire XLPE Insulated Power Cable for Low Voltage Applications in IEC 60502-1 Standard

Description

Model NO.:	N2XY/YJV	Current:	AC Cable
Insulation Material:	XLPE	Sheath Material:	PVC
Material Shape:	Round Wire	Wire Core Material:	Bare Copper Wire
Model:	YJV	Brand:	Shan Cable
Standard:	IEC 60502-1	Transport Package:	Steel Wooden Drum
Specification:	10/16/25/35/50/70/95/120	Trademark:	Shan Cable
Origin:	China	HS Code:	8544
Supply Ability:	10km Per Day

Product Name:0.6/1kv XLPE Insulated Electric Power cable

Description:

0.6/1kv XLPE Insulated Electric Power cable
CU/XLPE/PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA. ISO

Constructions

Conductor      : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation      : XLPE(cross-linked polyethylene) rated at 90ºC
Sheath         : PVC type ST₂ to IEC 60502, black

Note: Insulation color as per standards or customer requirement

Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 0.6/1kV
Max. Conductor Temp.: normal (90ºC), short circuit no more than 5 s (160ºC when section-area below 300mm², 140ºC when section-area above 300mm²)
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0ºC
Min. Bending Radius: single core cable 20(d+D)±5%
                    Multi-core cable 15(d+D)±5%

Certificates
CE, RoHS, CCC, KEMA and more others at request

Technical Specifications

Nom. Cross-section of conductor	Strands No./Dia. of Conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx .Weight	Max. D.C Resistance of Conductor (20 ºC)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm	mm	Lower Limit (mm)	kg/km	Ω /km	kV/5min	In air (A)	Direct In soil(A)
1 × 1.5	1/1.38	0.7	1.5	6	53	12.1	3.5	26	33
1 × 2.5	1/1.78	0.7	1.5	6	68	7.41	3.5	34	43
1 × 4	1/2.25	0.7	1.5	7	87	4.61	3.5	44	56
1 × 6	1/2.76	0.7	1.5	7	110	3.08	3.5	56	70
1 × 10	7/1.38	0.7	1.5	8	155	1.83	3.5	77	94
1 × 16	7/1.78	0.7	1.5	9	220	1.15	3.5	100	120
1 × 25	7/2.14	0.9	1.5	10.0	345	0.727	3.5	130	155
1 × 35	7/2.52	0.9	1.5	12.0	424	0.524	3.5	160	185
1 × 50	10/2.52	1.0	1.5	13.0	555	0.387	3.5	195	220
1 × 70	14/2.52	1.1	1.5	14.0	770	0.268	3.5	245	270
1 × 95	19/2.52	1.1	1.5	16.0	1040	0.193	3.5	300	320
1 × 120	24/2.52	1.2	1.5	18.0	1290	0.153	3.5	350	365
1 × 150	30/2.52	1.4	2.0	20.0	1590	0.124	3.5	400	410
1 × 185	37/2.52	1.6	2.0	22.0	1944	0.0991	3.5	465	465
1 × 240	48/2.52	1.7	2.0	25.0	2510	0.0754	3.5	550	540
1 × 300	61/2.52	1.8	2.0	27.0	3042	0.0601	3.5	635	610
1 × 400	61/2.97	2.0	2.1	31.0	3869	0.0470	3.5	745	695
1 × 500	61/3.23	2.2	2.2	35.0	4910	0.0366	3.5	860	780
1 × 630	61/3.50	2.4	2.3	40.0	6220	0.0283	3.5	990	880
1 × 800	91/3.20	2.6	2.4	45.0	7870	0.0221	3.5	1120	970
1 × 1000	91/3.75	2.8	2.6	51.0	9804	0.0176	3.5	1260	1060
2 × 2.5	1/1.78	0.7	1.4	11.8	151	7.41	3.5	26	35
2 × 4	1/2.25	0.7	1.8	12.7	198	4.61	3.5	34	45
2 × 6	1/2.76	0.7	1.8	13.7	250	3.08	3.5	43	57
2 × 10	7/1.38	0.7	1.8	15.0	374	1.83	3.5	60	77
2 × 16	7/1.78	0.7	1.8	17.0	518	1.15	3.5	83	105
2 × 25	7/2.14	0.9	1.8	20.0	772	0.727	3.5	105	125
2 × 35	7/2.52	0.9	1.8	22.0	1006	0.524	3.5	125	155
2 × 50	10/2.52	1.0	1.8	20.0	1365	0.387	3.5	160	185
2 × 70	14/2.52	1.1	1.8	21.0	1872	0.268	3.5	200	225
2 × 95	19/2.52	1.1	1.8	24.0	2475	0.193	3.5	245	270
2 × 120	24/2.52	1.2	1.8	27.0	3089	0.153	3.5	285	310
2 × 150	30/2.52	1.4	1.9	30.0	3834	0.124	3.5	325	345
3 × 1.5	1/1.38	0.7	1.4	10.0	145	12.1	3.5	20	27
3 × 2.5	1/1.78	0.7	1.8	11.0	185	7.41	3.5	26	35
3 × 4	1/2.25	0.7	1.8	12.0	250	4.61	3.5	34	45
3 × 6	1/2.76	0.7	1.8	13.0	320	3.08	3.5	43	57
3 × 10	7/1.38	0.7	1.8	16.0	450	1.83	3.5	60	77
3 × 16	7/1.78	0.7	1.8	18.0	640	1.15	3.5	83	105
3 × 25	7/2.14	0.9	1.8	21.0	940	0.727	3.5	105	125
3 × 35	7/2.52	0.9	1.8	23.0	1260	0.524	3.5	125	155
3 × 50	10/2.52	1.0	1.8	23.0	1670	0.387	3.5	160	185
3 × 70	14/2.52	1.1	1.8	26.0	2280	0.268	3.5	200	225
3 × 95	19/2.52	1.1	1.9	30.0	3020	0.193	3.5	245	270
3 × 120	24/2.52	1.2	2.0	32.0	3790	0.153	3.5	285	310
3 × 150	30/2.52	1.4	2.2	37.0	4750	0.124	3.5	325	345
3 × 185	37/2.52	1.6	2.3	41.0	5654	0.0991	3.5	375	390
3 × 240	48/2.52	1.7	2.4	46.0	7243	0.0754	3.5	440	450
3 × 300	61/2.52	1.8	2.6	51.0	9465	0.0601	3.5	505	515
3 × 400	61/2.97	2.0	3.0	64.0	12066	0.0470	3.5	570	575
4 × 4	1/2.25	0.7	1.8	13.0	253	4.61	3.5	34	45
4 × 6	1/2.76	0.7	1.8	14.0	337	3.08	3.5	43	57
4 × 10	7/1.38	0.7	1.8	17.0	501	1.83	3.5	60	77
4 × 16	7/1.78	0.7	1.8	20.0	778	1.15	3.5	83	105
4 × 25	7/2.14	0.9	1.8	23.0	1160	0.727	3.5	105	125
4 × 35	7/2.52	0.9	1.8	25	1554	0.524	3.5	125	155
4 × 50	10/2.52	1.0	1.8	23	2148	0.387	3.5	160	185
4 × 70	14/2.52	1.1	1.8	27	2928	0.268	3.5	200	225
4 × 95	19/2.52	1.1	1.9	31	3854	0.193	3.5	245	270
4 × 120	24/2.52	1.2	2.0	33	4925	0.153	3.5	285	310
4 × 150	30/2.52	1.4	2.2	38	6238	0.124	3.5	325	345
4 × 185	37/2.52	1.6	2.3	42	7562	0.0991	3.5	375	390
4 × 240	48/2.52	1.7	2.5	47	9836	0.0754	3.5	440	450
4 × 300	61/2.52	1.8	2.6	52	12550	0.0601	3.5	505	515
4 × 400	61/2.97	2.0	3.1	66	15929	0.0470	3.5	570	575
5 × 4	1/2.25	0.7	1.8	14.5	349	4.61	3.5	34	45
5 × 6	1/2.76	0.7	1.8	15.8	460	3.08	3.5	43	57
5× 10	7/1.38	0.7	1.8	19.0	699	1.83	3.5	60	77
5 × 16	7/1.78	0.7	1.8	22.0	1013	1.15	3.5	83	105
5 × 25	7/2.14	0.9	1.8	25.0	1566	0.727	3.5	105	125
5 × 35	7/2.52	0.9	1.9	28.0	2083	0.524	3.5	125	155
5× 50	10/2.52	1.0	2.0	31.0	2921	0.387	3.5	160	185
5× 70	14/2.52	1.1	2.1	36.0	3974	0.268	3.5	200	225
5× 95	19/2.52	1.1	2.2	39.0	5297	0.193	3.5	245	270
5 × 120	24/2.52	1.2	2.4	44.0	6638	0.153	3.5	285	310
5 × 150	30/2.52	1.4	2.5	49.0	8290	0.124	3.5	325	345
5 × 185	37/2.52	1.6	2.7	55.0	10215	0.0991	3.5	375	390
5 × 240	48/2.52	1.7	3.0	64.0	13130	0.0754	3.5	440	450
5 × 300	61/2.52	1.8	3.2	70.0	16670	0.0601	3.5	505	515
3 × 4+ 1 × 2.5	1/2.25+1/1.38	0.7	1.8	13	236	4.61	3.5	34	45
3 × 6+ 1 × 4	1/2.76+1/2.25	0.7	1.8	14	316	3.08	3.5	43	57
3 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.8	17	461	1.83	3.5	60	77
3 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.8	19	679	1.15	3.5	83	105
3 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.8	22	1065	0.727	3.5	105	125
3 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.8	24	1360	0.524	3.5	125	155
3 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.8	25	1901	0.387	3.5	160	185
3 × 70+ 1 × 35	14/2.52+7/2.52	1.1	1.9	28	2585	0.268	3.5	200	225
3 × 95+ 1 × 50	19/2.52+10/2.52	1.1	2.0	32	3518	0.193	3.5	245	270
3 × 120+ 1 × 70	24/2.52+14/2.52	1.2	2.1	35	4443	0.153	3.5	285	310
3 × 150+ 1 × 70	30/2.52+14/2.52	1.4	2.2	40	5326	0.124	3.5	325	345
3 × 185+ 1 × 95	37/2.52+19/2.52	1.6	2.4	43	6682	0.0991	3.5	375	390
3 × 240+ 1 × 120	48/2.52+24/2.52	1.7	2.5	48	8501	0.0754	3.5	440	450
3 × 300+ 1 × 150	61/2.52+30/2.52	1.8	2.7	54	11155	0.0601	3.5	505	515
3 × 4+ 2 × 2.5	1/2.25+1/1.38	0.7	1.8	13.9	309	4.61	3.5	34	45
3 × 6+ 2 × 4	1/2.76+1/2.25	0.7	1.8	15.3	413	3.08	3.5	43	57
3 × 10+ 2 × 6	7/1.38+1/2.8	0.7	1.8	17.7	603	1.83	3.5	60	77
3 × 16+ 2 × 10	7/1.78+7/1.38	0.7	1.8	20.7	888	1.15	3.5	83	105
3 × 25+ 2 × 16	7/2.14+7/1.78	0.9	1.8	24.0	1342	0.727	3.5	105	125
3 × 35+ 2 × 16	7/2.52+7/1.78	0.9	1.8	25.7	1647	0.524	3.5	125	155
3 × 50+ 2 × 25	10/2.52+7/2.14	1.0	1.9	28.8	2386	0.387	3.5	160	185
3 × 70+ 2 × 35	14/2.52+7/2.52	1.1	2.0	32.4	3201	0.268	3.5	200	225
3 × 95+ 2 × 50	19/2.52+10/2.52	1.1	2.1	35.6	4269	0.193	3.5	245	270
3 × 120+ 2 × 70	24/2.52+14/2.52	1.2	2.3	41.1	5437	0.153	3.5	285	310
3 × 150+ 2 × 70	30/2.52+14/2.52	1.4	2.4	43.6	6519	0.124	3.5	325	345
3 × 185+ 2 × 95	37/2.52+19/2.52	1.6	2.5	49.1	8101	0.0991	3.5	375	390
3 × 240+ 2 × 120	48/2.52+24/2.52	1.7	2.7	54.2	10340	0.0754	3.5	440	450
3 × 300+ 2 × 150	61/2.52+30/2.52	1.8	2.8	55.6	12810	0.0601	3.5	505	515
4 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.8	18.3	649	1.83	3.5	60	77
4 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.8	21.1	965	1.15	3.5	83	105
4 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.8	24..5	1456	0.727	3.5	105	125
4 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.8	26.9	1863	0.524	3.5	125	155
4 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.9	28.8	2633	0.387	3.5	160	185
4 × 70+ 1 × 35	14/2.52+7/2.52	1.1	2.0	32.4	3565	0.268	3.5	200	225
4 × 95+ 1 × 50	19/2.52+10/2.52	1.1	2.1	35.6	4735	0.193	3.5	245	270
4 × 120+ 1 × 70	24/2.52+14/2.52	1.2	2.3	41.1	5977	0.153	3.5	285	310
4 × 150+ 1 × 70	30/2.52+14/2.52	1.4	2.4	43.6	7276	0.124	3.5	325	345
4 × 185+ 1 × 95	37/2.52+19/2.52	1.6	2.5	49.1	9055	0.0991	3.5	375	390
4 × 240+ 1 × 120	48/2.52+24/2.52	1.7	2.7	54.2	11567	0.0754	3.5	440	450
4 × 300+ 1 × 150	61/2.52+30/2.52	1.8	3.1	66.3	14321	0.0601	3.5	505	515
