Durable PV1-F Solar Cable in 2.5mm, 4mm, 6mm, and 16mm

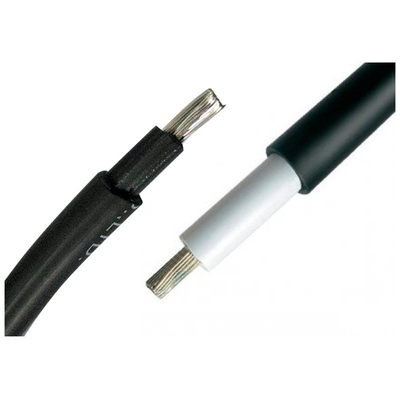

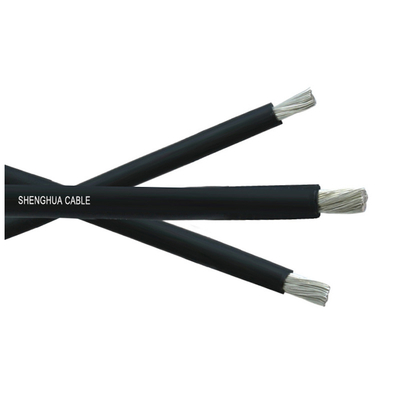

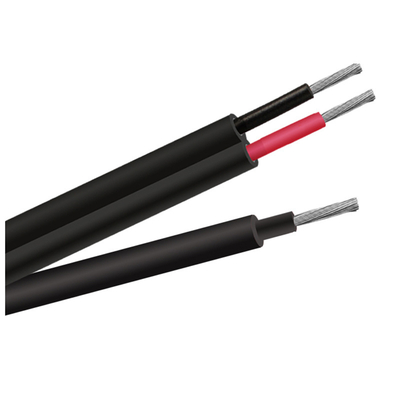

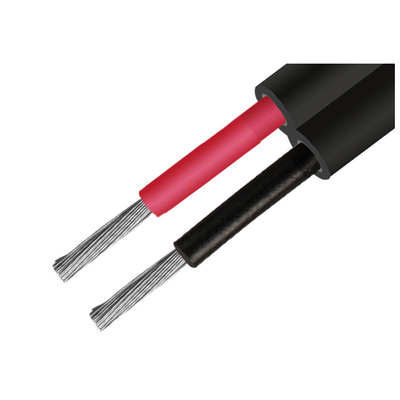

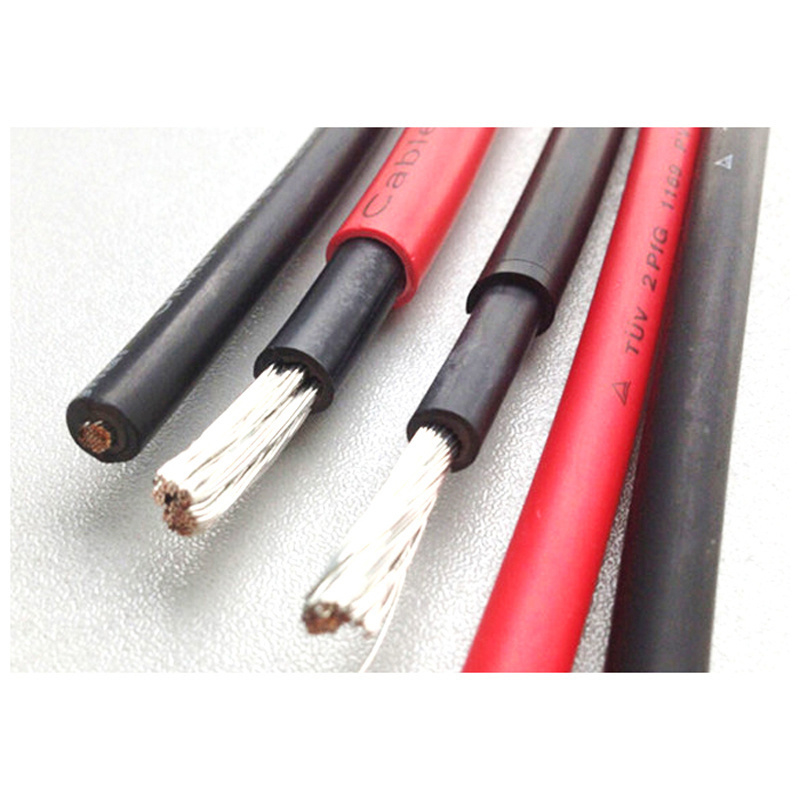

The XLPO Insulation and Jacket Single Core Solar Cable is meticulously engineered to cater to the dynamic demands of the solar industry. This exceptional cable plays a crucial role in various applications, notably the connection to module junction boxes and the essential cable routing required in balance system integration, all while being rated at an impressive 1000V.

Conductor: Crafted with precision, this cable features a fully annealed flexible tinned copper conductor, adhering to Class 5 standards as per VDE 0295 and IEC 60228, ensuring unparalleled performance and reliability.
Insulation/Jacket Material: Featuring a robust XLPO composition, this material is designed to provide exceptional durability and longevity, safeguarding the cable in demanding environments.

Nominal Voltage: With a remarkable nominal voltage capacity of AC U0/U=600/1000V and DC 1000/1800V, this cable is engineered to meet rigorous energy requirements effortlessly.
Temperature Rating: Capable of withstanding extreme temperatures, this cable operates efficiently across a wide range from -40 degrees to 90 degrees, ensuring consistent performance in diverse conditions.
Bending Radius: Engineered for flexibility, the cable boasts a bending radius of 5 times the outer diameter (5xO.D), offering ease of installation and adaptability in complex setups.

		Technical Specifications
Customer	Valuable customer			Sheet  NO		S0518001
Standard	EN50618			Construction Figure
Construction	H1Z2Z2-K 1X4mm2
Construction Item	Units	4.0mm2
Construction	mm	52/0.295±0.01
Material	---	Tinned copper wire
O.D	mm	2.40
Insulation
Material	---	XLPO
Avg.Thick	mm	0.70
Min.Thick	mm	0.50		Electric Characters
O.D	mm	3.95±0.15		Voltage rating DC1500V
Color	---	Black		Temperature rating:-40~90ºC
Twisted Pair				Dielectric strength:AC-6.5kV/5min
Ins.Color	---	/		Spark test:AC-10kV/In the air
Lay of Strand	mm	/		Conductor resistance:5.09ΩKM Max at20ºC
O.D	mm	/		Weathering/UV-resistance:720h,No cracking
Assemble				Thermal endurance properties: 25 Years
Filling	---	/		Physical Properties
Lapping	---	/
Drain.wire	---	/		Elongation of unaged values(%):≥125%
Covering				Insulation Tensile strength of unaged values (N/mm2):≥6.5;Jacket  Tensile strength of unaged values (N/mm2):≥8.0
Material	---	/
Avg.Thick	mm	/
Min.Thick	mm	/		Aged in a full draft circulating air oven: 150±2.0ºC
O.D	mm	/		Elongation of  After aging(%):<=30%
Color	---	/		Tensile strength of  After aging:<=30%
Armour				Ozone resistance:25±2ºC*24h  No cracking
Construction	' ---	/		Cold bend test:  -40±2ºC*16h       No cracking
Coverage	%	/		Cold impact test:-40ºC*16h/1000g;100mm  No cracking
Shield				Flame test:IEC 60332
Material/	---	/			Shanghai shenghua Cable Co.,Ltd
Construction	---	/
Coverage	%	/
Jacket
Material	---	XLPO
Avg.Thick	mm	0.80
Min.Thick	mm	0.60
O.D/	mm	5.55±0.2		APPROVED		CHECKED	DESIGNED
Color/	' ---	Black				/	WKB
Surface/	---	/
Marking				APPROVED BY THE CLIENT
TÜV  DC1500V  H1Z2Z2-K 1×4.0mm2 Shanghai  shenghua Cable  Co., Ltd
