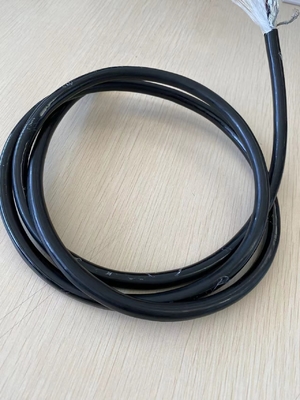

TPU Outer Sheathed Instrumentation Cable for Mining Hpmcu-300V 2X2X20AWG.

TPU Outer Sheathed Instrumentation Cable for Mining Hpmcu-300V 2X2X20AWG.
TPU Outer Sheathed Instrumentation Cable for Mining Hpmcu-300V 2X2X20AWG. TPU Outer Sheathed Instrumentation Cable for Mining Hpmcu-300V 2X2X20AWG. TPU Outer Sheathed Instrumentation Cable for Mining Hpmcu-300V 2X2X20AWG. TPU Outer Sheathed Instrumentation Cable for Mining Hpmcu-300V 2X2X20AWG. TPU Outer Sheathed Instrumentation Cable for Mining Hpmcu-300V 2X2X20AWG. TPU Outer Sheathed Instrumentation Cable for Mining Hpmcu-300V 2X2X20AWG.

Large Image :  TPU Outer Sheathed Instrumentation Cable for Mining Hpmcu-300V 2X2X20AWG.

Product Details:
Certification: ISO9001, CE, CCC, RoHS, VDE
Contact Now

TPU Outer Sheathed Instrumentation Cable for Mining Hpmcu-300V 2X2X20AWG.

Description
Model NO.: HPMCU-300V 2x2x20AWG. Application: Underground
Conductor Material: Copper Sheath Material: TPU
Insulation Material: PVC Material Shape: Round Wire
Range Of Application: Mine Brand: Shanghai Shenghua
Conductor: Tinned Copper Wire Insulation: PVC
Insulation Color: Black/Brown,Blue/Violet Filler: Nylon Wire
Individual Shield: Aluminum -Foil Overall Shield: Aluminum -Foil
Drain Wire: Tinned Copper Wire. Jacket: TPU
Jacket Color: Black Test Voltage: 3000V/1min
Conductor Resistance: 34.6 Omega;/ Km Rated Voltage: 300V
Transport Package: 1000m/Drum Specification: 2x2x20AWG
Trademark: SHAN CABLE Origin: Shanghai China
HS Code: 8544492100 Supply Ability: 6812km/Week

TPU Outer Sheathed Instrumentation Cable For Mining HPMCU-300V 2x2x20AWG.
  1. Cable Name :TPU Instrumentation Cable HPMCU-300V 2x2x20AWG.
  2. Technical Specifications
Diagrammatic cross-section Insulation Color)
  Insulation

Black&Brown,Blue&Violet
Marking on the Jacket
SHANGHAI SHENGHUA HPMCU-SP -300V 2X2X20AWG***Meter

Marking should be :Clearness,beautiful,

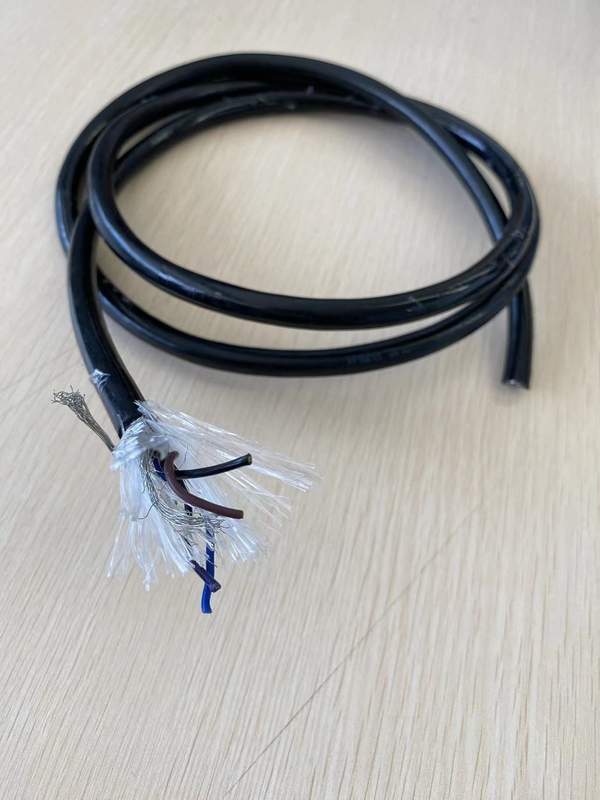

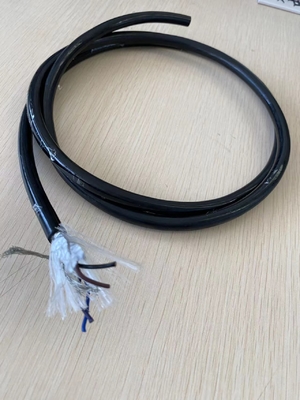

Construction
Conductor structure Jacket
Conductor Material Tinned copper (Material TPU
Conductor Size  26/0.16mm(AWG20) Average Thickness 1.6mm
Conductor Q.D 0.94mm Min Thickness) 1.5mm
Insulation Material SR-PVC O.D. 9.3±0.5 mm
Insulation Q.D.) 1.60±0.05mm Color Black
Min Thickness 0.28mm
Average Thickness 0.33mm
Shield Electrical Characteristics)
Twisted pitch 32±5mm conductor resistance,at 20ºC)   34.6 Ω5/KM
Individually Shield  Aluminum-Foil Rated voltage) 300V
Filler Nylon Wire Voltage withstand test) 2000V/1min
Overall Shield  Aluminum-Foil (Rated temperature) 80ºC
Drain wire   26/0.16mm
(Tinned Copper)

Wrapped material
(Non-woven fabrics)
Braid Physical Properties
aterial / Tensile strength ≥10.3 MPa
Size / Elongation
  /
  /
  1. Packing request

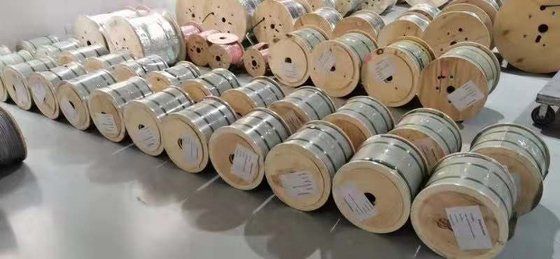

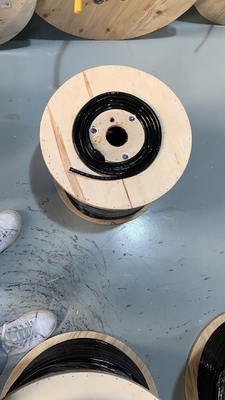

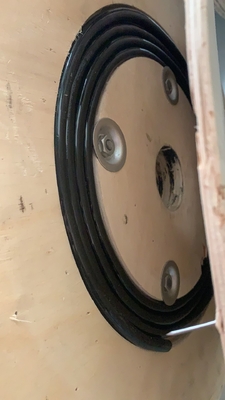

  1. Using Reel or wooden drum ,and stored in a dry place without any corrosive gas
