Product Details:
Certification: ISO, CCC, CE, RoHS, VDE

Efficient Fire Resistant Cable for Seamless Power Distribution

Description
Model NO.: FRC Current: DC & AC
Insulation Material: PVC Sheath Material: Lsoh
Material Shape: Round Wire Wire Core Material: Red Copper Wire
Model: Wdza-Yjy Brand: Shanghai Shenghua
Test Voltage: 3.5kv/5mins Jacket Color: Orange
Transport Package: Wooden Drum Specification: 4x25 Mm2
Trademark: SHAN CABLE Origin: Shanghai China
HS Code: 8544492100 Supply Ability: 6812km/Week

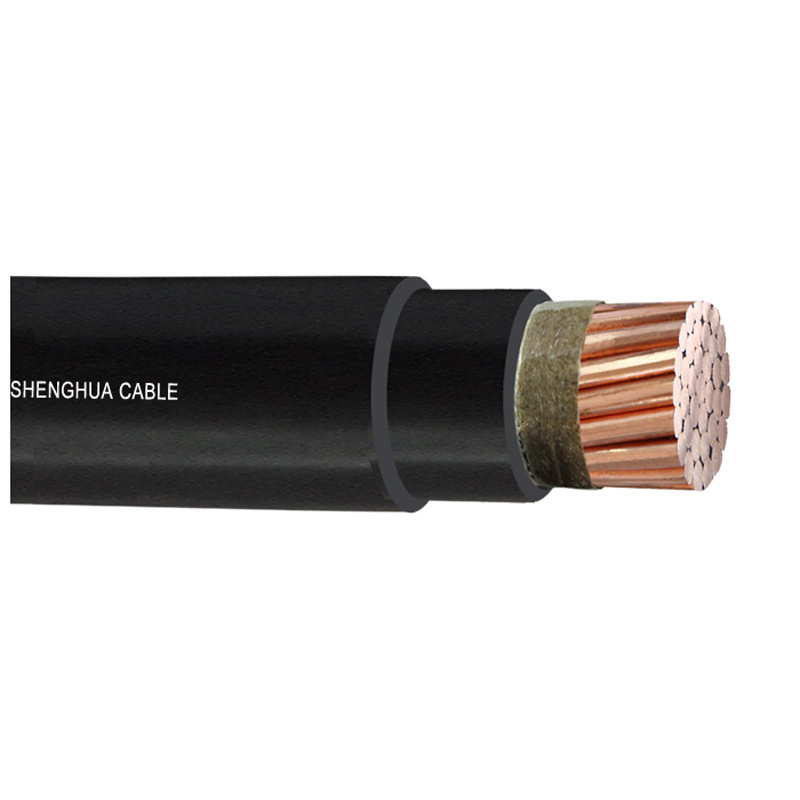

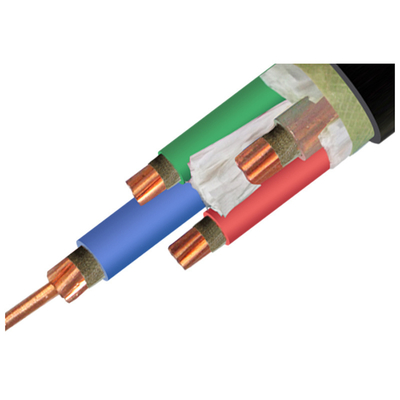

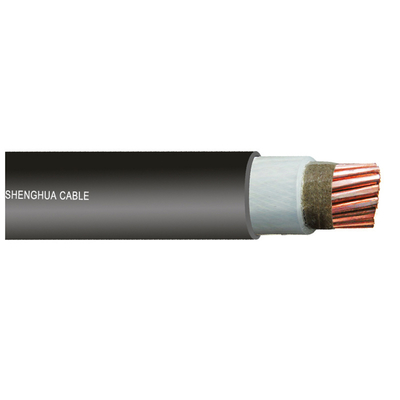

Constructions
  1. Copper or aluminum conductor
  2. Mica tape for fire-proof
  3. PE or XLPE insulation
  4. Filler
  5. Wrapping tape
  6. Low-smoke zero halogen or low-smoke low- halogen polyolefin sheath
  7. Cable mark

Applications
Used for applications requiring circuit integrity during a fire mainly used in Fire Alarm systems, sprinkler systems in schools, hospitals, cinemas and railways.

Standards
International: IEC 60331
China: GA 306.2-2001, GB12706-91

Model List
SC1-FPB-CE XLPE insulated halogen-free polyolefin sheathed safe & clean fire-proof cable
SC3-FPB-CV XLPE insulated low-halogen PVC sheathed safe & clean fire-proof cable
SC1-FPB-CE2 XLPE insulated steel tape armored halogen-free polyolefin sheathed safe & clean fire-proof cable
SC3-FPB-CV2 XLPE insulated steel tape armored low-halogen PVC sheathed safe & clean fire-proof cable


Code designations
S Safe
C Clean, Low smike, zero halogen
1 or 3 Flame resistant class as per GA306.1-2001
A or C Flame resistant type A or C
FP Fire proof
B Fire rated temperature 750-800ºC
C Crosslinked polyethylene-XLPE
CT XLPE insulated control cable
E Zero halogen polyolefin sheath
V Low halogen PVC sheath
2 Steel tape armoring
P Copper wire braid screen
P2 Copper tape screen

Specifications

Voltage Model No. Cores Section area (mm2) Model No. Cores Section area (mm2)
0.6/1kV SC1A-CE and SC1-FPB-CE series 1 1.5    400 SC1A-CE2 and SC1-FPB-CE2 series 1 1.5    400
2 1.5    400 2 1.5    400
3 1.5    400 3 1.5    400
4 1.5    400 4 1.5    400
3+1 2.5    240 3+1 2.5    240
5 2.5    240 5 2.5    240
3+2 2.5    240 3+2 2.5    240
4+1 2.5    240 4+1 2.5    240
4     61 1     2.5 4    61 1     2.5
450/750V SC1A-CTE series 4    14 4 CBV
CRV series cables' specifications
CBVR
SC1A-CTE2 series 4    14 6
SC1A-CTEP series
SC1A-CTEP2 series
