Flexible Low Smoke Zero Halogen Free Cable for Easy Installation

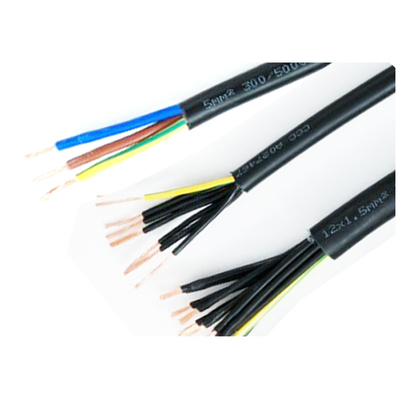

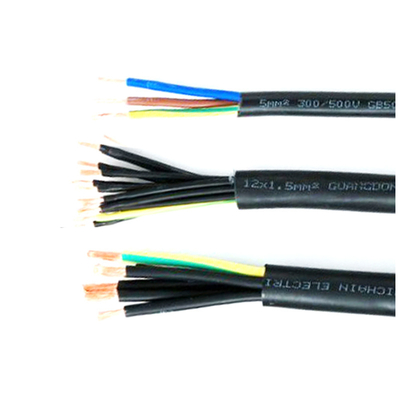

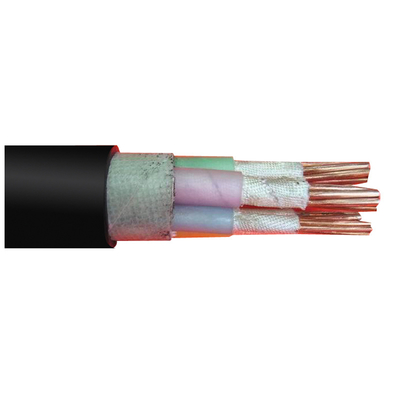

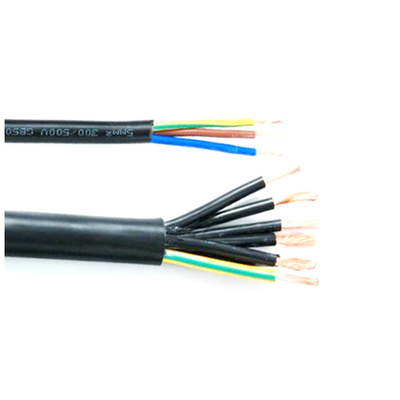

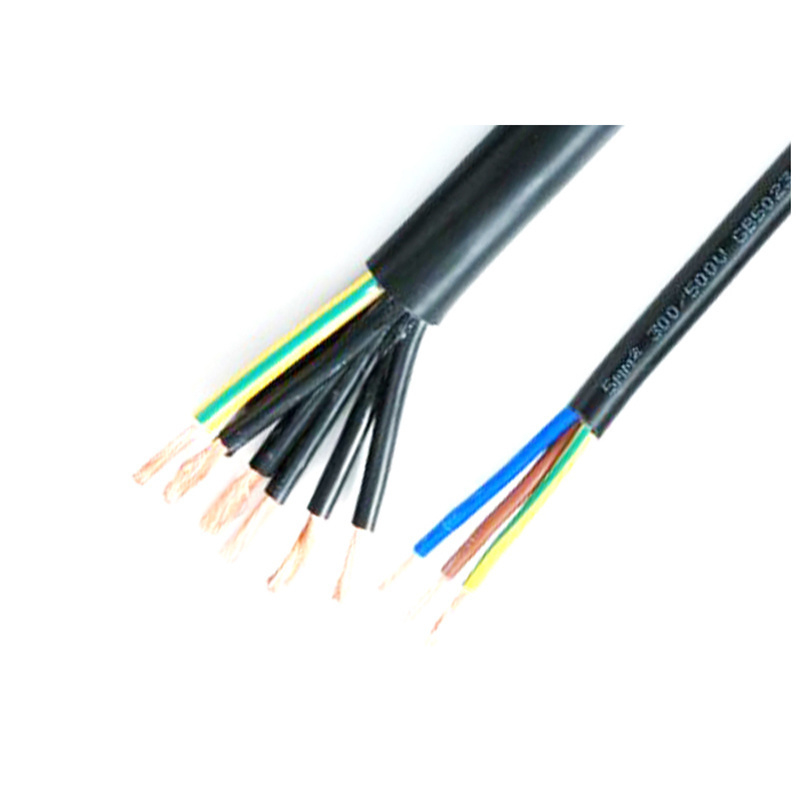

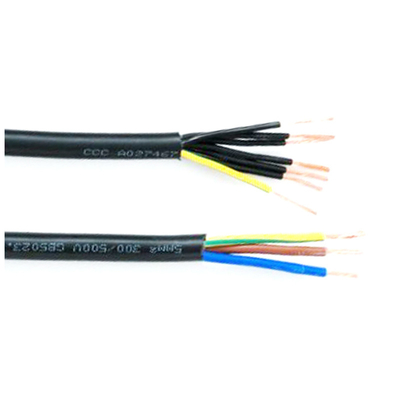

Large Image : Flexible Low Smoke Zero Halogen Free Cable for Easy Installation

Product Details:

Certification:	ISO, CCC, CE, RoHS, VDE

Contact Now

Flexible Low Smoke Zero Halogen Free Cable for Easy Installation

Description

Model NO.:	WDZA-YJY-0.6/1KV	Current:	DC & AC
Insulation Material:	XLPE	Sheath Material:	Lsoh
Material Shape:	Round Wire	Wire Core Material:	Red Copper Wire
Model:	Wdza-Yjy	Brand:	Shanghai Shenghua
Test Voltage:	3.5kv/5mins	Jacket Color:	Orange
Transport Package:	Wooden Drum	Specification:	4x25 Mm2
Trademark:	SHAN CABLE	Origin:	Shanghai China
HS Code:	8544492100	Supply Ability:	6812km/Week

1.Low Smoke Halogen Free environmental protection cable (LSHF, LSZH, LSOH) 4x25SQMM-0.6/1K

2.

Brand Name:	SHAN CABLE
Model Number:	WDZA-YJY
Certification:	TUV/CE/KEMA/CCC
Place of Origin:	China

Product Name

Environmental protection LSHF fire resistant cable

Application

Laying indoor, in tunnels and in ducts used for electric transmission and distribution systems

Size

1.5-800mm²

Rated Voltage

0.6/1kV

Free sample

Yes

Color

Black or customized

Standard

IEC60502 ,IEC60754,IEC61034-1

Characteristic

Low Smoke Zero Halogen

Minimum Order Quantity:	500m
Price:	negotiation
Payment Terms:	T/T or L/C
Supply Ability:	20KM per month
Delivery Time:	Depending on order quantity
Packaging Details:	Wooden drum

5.
Applications:
Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.
Constructions
Conductor: Class 1/2 annealed bare copper solid or strands. This wires are formed into final conductor in the stranding machines under strict quality surveillance.

Insulation: Cross linked polyethylene compound or PVC is insulated over the conductors by extrusion process.The raw materials and thicknesses of Insulation are maintained as per standards and conform to IEC60502/BS7870 Standards as the case may be.

XLPE:Insulated Power Cable are identified either by colour or by numbers as follows:
No. of cores Identification
Old Colour coding New Colour coding as per BS
1 Red or Black Brown or Blue
2 Red & Black Brown, Blue
3 Red, Yellow Blue Brown, Black, Grey
4 Red, Yellow, Blue & Black Blue, Brown, Black, Grey
5 Red, Yellow, Blue, Black, Y/G Blue, Brown, Black, Grey & Y/G

Armour : When armouring is required, the armour consists of single layer of galvanised steel wires/galvanized steel tapes.
The armour is applied helically as per standards.
Single core cables are armoured with Aluminium Wires or Copper wires based on requirement.

Outer sheath : Standard cables are manufactured with Extruded black PVC. Outersheath is embossed or printed with the information required by relevant standards.
Special FR, FRLS, FRRT, LSF, MDPE compounds are used for outersheathing of cables, to suit customer's specific requirements.
Standards
International: IEC 60502, IEC 60227 IEC 60331, IEC 601034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 0.6-KV
Max. Conductor Temp.:normal (90ºC), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
Min. Bending Radius: single core cable 20(d+D)±5% ,Multi-core cable 15(d+D)±5%

Type	Description	Cores	Nominal Cross Section
WDZA-YJY WDZB-YJY WDZC-YJY	Copper conductor/XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2
WDZA-YJY23 WDZB-YJY23 WDZC-YJY23	Copper conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2
WDZA-YJY33 WDZB-YJY33 WDZC-YJY33	Copper conductor/XLPE insulation/Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2
WDZA-YJLY WDZB-YJLY WDZC-YJLY	Aluminum conductor/XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2
WDZA-YJLY23 WDZB-YJLY23 WDZC-YJLY23	Aluminum conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2
WDZA-YJLY33 WDZB-YJLY33 WDZC-YJY33	Aluminum conductor/XLPE insulation/Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2
