Resilient PVC Insulated Cables for Power Lines

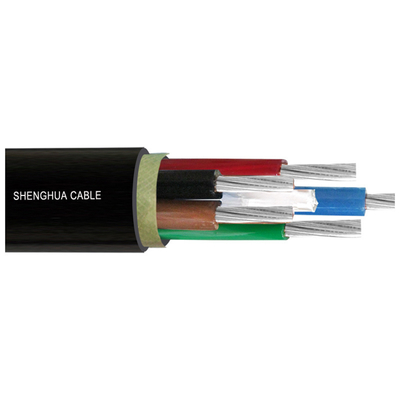

Large Image : Resilient PVC Insulated Cables for Power Lines

Product Details:

Certification:	ISO, CCC, CE, RoHS

Contact Now

Resilient PVC Insulated Cables for Power Lines

Description

Model NO.:	BV VV BVV BVR	Current:	DC & AC
Insulation Material:	PVC	Sheath Material:	PVC
Material Shape:	Round Wire	Wire Core Material:	Bare Copper Wire
Model:	PVC Insulation	Brand:	Xinxin
Color:	White/Black	MOQ:	500m
Conductor:	Copper /Aluminum	Insulation:	PVC
Sheath:	PVC	Transport Package:	Wooden Steel Drum
Specification:	1.11.10.98m	Trademark:	Shanghai Shenghua Cable Group
Origin:	Shanghai, China	HS Code:	8544492100
Supply Ability:	100000

CU/PVC/PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA

Constructions
Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation: PVC/A
Inner Covering: PVC
Sheath: PVC confirm to IEC 60502 Black
Note: Insulation color as per standards or at request
Applications
Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/1KV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.

Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (70ºC), short circuit no more than 5 s (160ºC when section-area below 300mm², 140ºC when section-area above 300mm²)
Min. Ambient Temp.: 0ºC, after installation and only when cable is in a fixed position

Certificates
CE, RoHS, CCC, KEMA and more others at request

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness		Inner covering	Steel Tape Thickness	Sheath Thickness	Approx. O.D.	Approx.Weight	Max. D.C Resistance of Conductor (20 ºC)		Testing Voltage A.C
mm²	pc/mm	mm		mm	mm	mm	mm	kg/km	Ω /km		kV/5min
1 × 10	7/1.38	1.0		1.0	2 × 0.5	1.4	13.6	348	1.83		3.5
1 × 16	7/1.78	1.0		1.0	2 × 0.5	1.4	14.6	432	1.15		3.5
1 × 25	7/2.14	1.2		1.0	2 × 0.5	1.4	16.4	574	0.727		3.5
1 × 35	7/2.52	1.2		1.0	2 × 0.5	1.5	17.5	699	0.524		3.5
1 × 50	10/2.52	1.4		1.0	2 × 0.5	1.5	19.3	870	0.387		3.5
1 × 70	14/2.52	1.4		1.0	2 × 0.5	1.6	21.1	1118	0.268		3.5
1 × 95	19/2.52	1.6		1.0	2 × 0.5	1.6	23.4	1444	0.193		3.5
1 × 120	24/2.52	1.6		1.0	2 × 0.5	1.7	25.0	1719	0.153		3.5
1 × 150	30/2.52	1.8		1.0	2 × 0.5	1.7	27.0	2046	0.124		3.5
1 × 185	37/2.52	2.0		1.0	2 × 0.5	1.8	30.7	2672	0.0991		3.5
1 × 240	48/2.52	2.2		1.0	2 × 0.5	1.9	33.3	3353	0.0754		3.5
1 × 300	61/2.52	2.4		1.0	2 × 0.5	2.0	36.4	4072	0.0601		3.5
1 × 400	61/2.97	2.6		1.2	2 × 0.5	2.1	40.1	5033	0.0470		3.5
1 × 500	61/3.23	2.8		1.2	2 × 0.5	2.2	44.1	6277	0.0366		3.5
1 × 630	61/3.50	2.8		1.4	2 × 0.5	2.3	48.7	7746	0.0283		3.5
1 × 800	91/3.20	2.8		1.4	2 × 0.5	2.6	51.4	9075	0.0221		3.5

2 × 4	1/2.25	1.0		1.0	2 × 0.2	1.8	16.6	424	4.61		3.5
2 × 6	1/2.76	1.0		1.0	2 × 0.2	1.8	17.6	493	3.08		3.5
2 × 10	7/1.38	1.0		1.0	2 × 0.2	1.8	19.2	663	1.83		3.5
2 × 16	7/1.78	1.0		1.0	2 × 0.2	1.8	22.3	844	1.15		3.5
2 × 25	7/2.14	1.2		1.0	2 × 0.2	1.8	25.8	1154	0.727		3.5
2 × 35	7/2.52	1.2		1.0	2 × 0.2	1.8	28.1	1431	0.524		3.5
2 × 50	10/2.52	1.4		1.0	2 × 0.2	1.8	25.6	1589	0.387		3.5
2 × 70	14/2.52	1.4		1.0	2 × 0.5	2.0	29.3	2243	0.268		3.5
2 × 95	19/2.52	1.6		1.0	2 × 0.5	2.1	33.8	2909	0.193		3.5
2 × 120	24/2.52	1.6		1.0	2 × 0.5	2.2	35.9	3475	0.153		3.5
2 × 150	30/2.52	1.8		1.2	2 × 0.5	2.4	39.7	4250	0.124		3.5
2 × 185	37/2.52	2.0		1.2	2 × 0.5	2.5	42.8	5010	0.0991		3.5
2 × 240	48/2.52	2.2		1.4	2 × 0.5	2.5	49.5	6067	0.0754		3.5
2 × 300	61/2.52	2.4		1.4	2 × 0.5	2.5	52.0	7167	0.0601		3.5

3 × 4	1/2.25	1.0			2 × 0.2	1.8	17.3	489	4.61		3.5
3 × 6	1/2.76	1.0			2 × 0.2	1.8	18.4	577	3.08		3.5
3 × 10	7/1.38	1.0		1.0	2 × 0.2	1.8	21.2	800	1.83		3.5
3 × 16	7/1.78	1.0		1.0	2 × 0.2	1.8	23.5	1050	1.15		3.5
3 × 25	7/2.14	1.2		1.0	2 × 0.2	1.8	27.2	1465	0.727		3.5
3 × 35	7/2.52	1.2		1.0	2 × 0.2	1.8	30.7	2149	0.524		3.5
3 × 50	10/2.52	1.4		1.0	2 × 0.5	1.9	31.3	2453	0.387		3.5
3 × 70	14/2.52	1.4		1.0	2 × 0.5	2.1	33.6	3116	0.268		3.5
3 × 95	19/2.52	1.6		1.2	2 × 0.5	2.2	38.3	4053	0.193		3.5
3 × 120	24/2.52	1.6		1.2	2 × 0.5	2.3	41.9	4930	0.153		3.5
3 × 150	30/2.52	1.8		1.2	2 × 0.5	2.5	47.1	6075	0.124		3.5
3 × 185	37/2.52	2.0		1.4	2 × 0.5	2.6	50.9	7299	0.0991		3.5
3 × 240	48/2.52	2.2		1.4	2 × 0.5	2.8	57.0	9213	0.0754		3.5
3 × 300	61/2.52	2.4		1.6	2 × 0.5	3.0	61.1	11185	0.0601		3.5
3 × 400	61/2.97	2.4		1.8	2 × 0.5	3.2	70.5	13330	0.0470		3.5

4 × 4	1/2.25	1.0			2 × 0.2	1.8	18.5	565	4.61		3.5
4 × 6	1/2.76	1.0			2 × 0.2	1.8	19.7	685	3.08		3.5
4 × 10	7/1.38	1.0		1.0	2 × 0.2	1.8	22.8	960	1.83		3.5
4 × 16	7/1.78	1.0		1.0	2 × 0.2	1.8	25.3	1273	1.15		3.5
4 × 25	7/2.14	1.2		1.0	2 × 0.2	1.8	30.5	1998	0.727		3.5
4 × 35	7/2.52	1.2		1.0	2 × 0.2	1.9	3.5	2505	0.524		3.5
4 × 50	10/2.52	1.4		1.0	2 × 0.5	2.0	35.2	3122	0.387		3.5
4 × 70	14/2.52	1.4		1.2	2 × 0.5	2.2	38.7	4025	0.268		3.5
4 × 95	19/2.52	1.6		1.2	2 × 0.5	2.4	44.7	5291	0.193		3.5
4 × 120	24/2.52	1.6		1.2	2 × 0.5	2.5	49.4	6464	0.153		3.5
4 × 150	30/2.52	1.8		1.4	2 × 0.5	2.6	53.7	7866	0.124		3.5
4 × 185	37/2.52	2.0		1.6	2 × 0.5	2.8	58.9	9542	0.0991		3.5
4 × 240	48/2.52	2.2		1.6	2 × 0.5	3.0	61.0	11916	0.0754		3.5
4 × 300	61/2.52	2.4		1.6	2 × 0.5	3.0	67.0	14118	0.0601		3.5
4 × 400	61/2.97	2.4		1.9	2 × 0.5	3.4	73.6	19950	0.0470		3.5

5 × 2.5	1/1.78	0.8			2 × 0.2	1.8	17.3	488	7.41		3.5
5 × 4	1/2.25	1.0			2 × 0.2	1.8	19.7	644	4.61		3.5
5 × 6	1/2.76	1.0			2 × 0.2	1.8	21.3	790	3.08		3.5
5× 10	7/1.38	1.0		1.0	2 × 0.2	1.8	24.6	1110	1.83		3.5
5 × 16	7/1.78	1.0		1.0	2 × 0.2	1.8	27.4	1485	1.15		3.5
5 × 25	7/2.14	1.2		1.0	2 × 0.2	1.8	33.3	2339	0.727		3.5
5 × 35	7/2.52	1.2		1.2	2 × 0.5	2.0	36.6	2953	0.524		3.5
5× 50	10/2.52	1.4		1.2	2 × 0.5	2.2	41.6	3975	0.387		3.5
5× 70	14/2.52	1.4		1.2	2 × 0.5	2.3	45.5	5125	0.268		3.5
5× 95	19/2.52	1.6		1.4	2 × 0.5	2.5	52.1	6798	0.193		3.5
5 × 120	24/2.52	1.6		1.4	2 × 0.5	2.6	57.3	8217	0.153		3.5
5 × 150	30/2.52	1.8		1.6	2 × 0.5	2.8	63.1	10030	0.124		3.5
5 × 185	37/2.52	2.0		1.6	2 × 0.5	3.0	69.9	12275	0.0991		3.5
5 × 240	48/2.52	2.2		1.8	2 × 0.5	3.2	77.1	15077	0.0754		3.5
5 × 300	61/2.52	2.4		1.9	2 × 0.5	3.2	86.5	18214	0.0601		3.5
5 × 400	61/2.97	2.4			2 × 0.5	3.5	92.2	22864	0.0470		3.5

3 × 4+ 1 × 2.5	1/2.25+1/1.38	1.0	0.8		2 × 0.2	1.8	17.9	538	4.61	7.41	3.5
3 × 6+ 1 × 4	1/2.76+1/2.25	1.0	1.0		2 × 0.2	1.8	19.5	657	3.08	4.61	3.5
3 × 10+ 1 × 6	7/1.38+1/2.8	1.0	1.0	1.0	2 × 0.2	1.8	22.1	894	1.83	3.08	3.5
3 × 16+ 1 × 10	7/1.78+7/1.38	1.0	1.0	1.0	2 × 0.2	1.8	24.7	1194	1.15	1.83	3.5
3 × 25+ 1 × 16	7/2.14+7/1.78	1.2	1.0	1.0	2 × 0.2	1.8	28.5	1668	0.727	1.15	3.5
3 × 35+ 1 × 16	7/2.52+7/1.78	1.2	1.0	1.0	2 × 0.2	1.8	31.7	2243	0.524	1.15	3.5
3 × 50+ 1 × 25	10/2.52+7/2.14	1.4	1.2	1.0	2 × 0.5	2.0	35.0	2852	0.387	0.727	3.5
3 × 70+ 1 × 35	14/2.52+7/2.52	1.4	1.2	1.2	2 × 0.5	2.1	38.5	3657	0.268	0.524	3.5
3 × 95+ 1 × 50	19/2.52+10/2.52	1.6	1.4	1.2	2 × 0.5	2.3	44.3	4796	0.193	0.387	3.5
3 × 120+ 1 × 70	24/2.52+14/2.52	1.6	1.4	1.2	2 × 0.5	2.4	49.0	5912	0.153	0.268	3.5
3 × 150+ 1 × 70	30/2.52+14/2.52	1.8	1.4	1.4	2 × 0.5	2.5	53.5	7025	0.124	0.268	3.5
3 × 185+ 1 × 95	37/2.52+19/2.52	2.0	1.6	1.4	2 × 0.5	2.7	58.9	8598	0.0991	0.193	3.5
3 × 240+ 1 × 120	48/2.52+24/2.52	2.2	1.6	1.6	2 × 0.5	2.9	60.6	10631	0.0754	0.153	3.5
3 × 300+ 1 × 150	61/2.52+30/2.52	2.4	1.6	1.6	2 × 0.5	3.1	65.6	12913	0.0601	0.124	3.5
3 × 400+ 1 × 240	61/2.97+48/2.52	2.4	1.8	1.8	2 × 0.5	3.3	72.8	15410	0.0470	0.0754	3.5

3 × 4+ 2 × 2.5	1/2.25+1/1.38	1.0	0.8	1.0	2 × 0.2	1.8	18.8	580	4.61	7.41	3.5
3 × 6+ 2 × 4	1/2.76+1/2.25	1.0	1.0	1.0	2 × 0.2	1.8	20.7	728	3.08	4.61	3.5
3 × 10+ 2 × 6	7/1.38+1/2.8	1.0	1.0	1.0	2 × 0.2	1.8	23.3	973	1.83	3.08	3.5
3 × 16+ 2 × 10	7/1.78+7/1.38	1.0	1.0	1.0	2 × 0.2	1.8	26.3	1323	1.15	1.83	3.5
3 × 25+ 2 × 16	7/2.14+7/1.78	1.2	1.0	1.0	2 × 0.2	1.8	31.5	2053	0.727	1.15	3.5
3 × 35+ 2 × 16	7/2.52+7/1.78	1.2	1.0	1.0	2 × 0.2	1.9	33.6	2406	0.524	1.15	3.5
3 × 50+ 2 × 25	10/2.52+7/2.14	1.4	1.2	1.2	2 × 0.5	2.1	38.4	3371	0.387	0.727	3.5
3 × 70+ 2 × 35	14/2.52+7/2.52	1.4	1.2	1.2	2 × 0.5	2.2	42.6	4350	0.268	0.524	3.5
3 × 95+ 2 × 50	19/2.52+10/2.52	1.6	1.4	1.2	2 × 0.5	2.4	48.5	5736	0.193	0.387	3.5
3 × 120+ 2 × 70	24/2.52+14/2.52	1.6	1.4	1.4	2 × 0.5	2.5	53.4	7126	0.153	0.268	3.5
3 × 150+ 2 × 70	30/2.52+14/2.52	1.8	1.4	1.4	2 × 0.5	2.6	57.2	8249	0.124	0.268	3.5
3 × 185+ 2 × 95	37/2.52+19/2.52	2.0	1.6	1.6	2 × 0.5	2.8	63.9	10254	0.0991	0.193	3.5
3 × 240+ 2 × 120	48/2.52+24/2.52	2.2	1.6	1.6	2 × 0.5	3.0	71.4	12888	0.0754	0.153	3.5
3 × 300+ 2 × 150	61/2.52+30/2.52	2.4	1.6	1.8	2 × 0.5	3.2	79.3	15483	0.0601	0.124	3.5
3 × 400+ 2 × 240	61/2.97+48/2.52	2.6	1.6		2 × 0.5	3.4	86.7	19950	0.0470	0.0754	3.5

4 × 4+ 1 × 2.5	1/2.25+1/1.38	1.0	0.8	1.0	2 × 0.2	1.8	19.2	605	4.61	7.41	3.5
4 × 6+ 1 × 4	1/2.76+1/2.25	1.0	1.0	1.0	2 × 0.2	1.8	20.8	765	3.08	4.61	3.5
4 × 10+ 1 × 6	7/1.38+1/2.8	1.0	1.0	1.0	2 × 0.2	1.8	23.9	152	1.83	3.08	3.5
4 × 16+ 1 × 10	7/1.78+7/1.38	1.0	1.0	1.0	2 × 0.2	1.8	26.9	1482	1.15	1.83	3.5
4 × 25+ 1 × 16	7/2.14+7/1.78	1.2	1.0	1.0	2 × 0.2	1.8	32.4	2312	0.727	1.15	3.5
4 × 35+ 1 × 16	7/2.52+7/1.78	1.2	1.0	1.0	2 × 0.2	1.9	35.1	2756	0.524	1.15	3.5
4 × 50+ 1 × 25	10/2.52+7/2.14	1.4	1.2	1.2	2 × 0.5	2.1	39.7	3680	0.387	0.727	3.5
4 × 70+ 1 × 35	14/2.52+7/2.52	1.4	1.2	1.2	2 × 0.5	2.3	44.0	4768	0.268	0.524	3.5
4 × 95+ 1 × 50	19/2.52+10/2.52	1.6	1.4	1.4	2 × 0.5	2.4	50.2	6267	0.193	0.387	3.5
4 × 120+ 1 × 70	24/2.52+14/2.52	1.6	1.4	1.4	2 × 0.5	2.6	55.1	7698	0.153	0.268	3.5
4 × 150+ 1 × 70	30/2.52+14/2.52	1.8	1.4	1.4	2 × 0.5	2.7	59.9	6216	0.124	0.268	3.5
4 × 185+ 1 × 95	37/2.52+19/2.52	2.0	1.6	1.6	2 × 0.5	2.9	66.5	11293	0.0991	0.193	3.5
4 × 240+ 1 × 120	48/2.52+24/2.52	2.2	1.6	1.6	2 × 0.5	3.1	74.3	14371	0.0754	0.153	3.5
4 × 300+ 1 × 150	61/2.52+30/2.52	2.4	1.6	1.8	2 × 0.5	3.3	80.1	17449	0.0601	0.124	3.5
4 × 400+ 1 × 240	61/2.97+48/2.52	2.4	1.6		2 × 0.5	3.6	88.2	21578	0.0470	0.0754	3.5
