High Quality Copper Electric Control Cable Instrumentation Wire Signal Cables

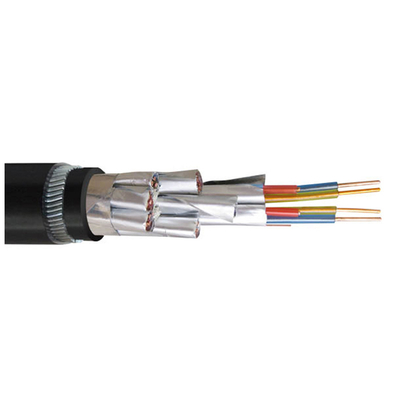

Large Image : High Quality Copper Electric Control Cable Instrumentation Wire Signal Cables

Product Details:

Certification:	ISO9001, CE, CCC, RoHS, VDE

Contact Now

High Quality Copper Electric Control Cable Instrumentation Wire Signal Cables

Description

Model NO.:	MSR-2Y(St) Y 300V 8x2x0.5 Mm2	Application:	Msr
Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	PE	Material Shape:	Round Wire
Range Of Application:	Power Plant	Brand:	Shanghai Shenghua
Standard:	En 80288-7	Conductor:	Bare Annealed Stranded Copper
Insulation:	PE	Overall Screen:	Aluminum Polyester Tapes Plus Tinned Copper Drain
Outer Sheath:	Flame-Retardant PVC	Outer Sheath Color:	Green Or Blue
Insulation Color:	Pair :Black/White	Test Voltage:	3.5 Kv
Rated Voltage:	300/500V	Temp Range:	-40ºC To +70ºC
Bending Radius:	7.5 Xo.D	Sample:	Available
Packing:	500m/Reel	Shipping:	By Container
Oil-Resistant:	Yes	Transport Package:	Wooden Drum
Specification:	8x2x0.5 SQMM	Trademark:	SHAN CABLE
Origin:	Shanghai China	HS Code:	8544492100
Supply Ability:	9853km/Week

Measuring and Signal Instrumentation Cables MSR-2Y(St) Y 300V 8x2x0.5 mm2 Best Qaulity.

1.Stranded Copper Conductor(class2).
2.PE insulation.
3.Aluminium/Polyester Tape Overall screen + Tinned copper drain wire
4.Flame-retardant PVC Outer sheath.
as per JB/T13486-2018

Construction
Model No.: ZR-DJYVP3B-300/500V		1x2x0.5 mm2	2x2x0.5 mm2	4x2x0.5 mm2	8x2x0.5 mm2
1	Conductor
	Material	Stranded Copper Conductor
	Type	Class 2	Class 2	Class 2	Class 2
	No./Diameter before stranded	7/0.3mm	7/0.3mm	7/0.3mm	7/0.3mm
2	Insulation
	Material	PE
	Color	Black,White+Number	Black,White+Number	Black,White+Number	Black,White+Number
	Thickness	0.6mm	0.6mm	0.6mm	0.6mm
	Minimum Insulation Thickness	0.44mm	0.44mm	0.44mm	0.44mm
	Diameter After Insulation	2.1mm	2.1mm	2.1mm	2.1mm
3	Overall Screen
	Material	Aluminium/Polyester Tape + Tinned copper drain wire
	Thickness of screen	0.05mm
	Number and diameter of Drain wire	7/0.3mm	7/0.3mm	7/0.3mm	7/0.3mm
	Drain wire cross section	0.5 mm2	0.5 mm2	0.5 mm2	0.5 mm2
	Diameter After Overall Screen	4.5mm	7.4mm	8.9mm	12.7mm
4	Outer Sheath
	Material	Flame-retardant PVC (Blue)
	Thickness	0.8mm	0.8mm	1.1mm	1.2mm
	Approx Overall Diameter	6.1mm	9.0mm	11.1mm	15.1mm
Technical Data & Packing
1	Rated voltage	300/500V	300/500V	300/500V	300/500V
2	Testing Voltage(1 minutes)	1000V	1000V	1000V	1000V
3	Max. Resistance of Conductor D.C at 20ºC	36 Ω/km	36 Ω/km	36 Ω/km	36 Ω/km
4	Approx Weight	44 kg/km	81 kg/km	129 kg/km	233 kg/km
5	Working Temp. of conductor	70ºC	70ºC	70ºC	70ºC
6	Short circuit 5s of conductor(max)	130~150ºC	130~150ºC	130~150ºC	130~150ºC
7	Min.Installation temp	>0ºC	>0ºC	>0ºC	>0ºC
