Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2

Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2
Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2 Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2 Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2 Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2 Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2

Large Image :  Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2

Product Details:
Certification: ISO9001, CE, CCC, VDE
Contact Now

Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2

Description
Model NO.: ZR-DJYPVP-300/500V Application: Control /Signal Center
Conductor Material: Copper Sheath Material: PVC
Insulation Material: PE Material Shape: Round Wire
Range Of Application: Power Station Brand: Shanghai Shenghua
Insulation Color: Black/White One Pair Jacket Color: Black.
Conductor: Pure Copper Wire Induvidual Screen: Copper Wire Braid Screen
Overal Screen: Copper Wire Braid Screen Packing Length: 2000m/Reel
Rated Voltage: 300/500V Test Voltage: 2500V/5min
Working Temp: 70ºC Cable Sample: Free
Outer Sheath Material: Flame-Retardant PVC Current: DC Cable
Transport Package: Reel Specification: 12x2x1.5mm2
Trademark: SHAN CABLE Origin: Shanghai China
HS Code: 8544492100 Supply Ability: 7853km/Week

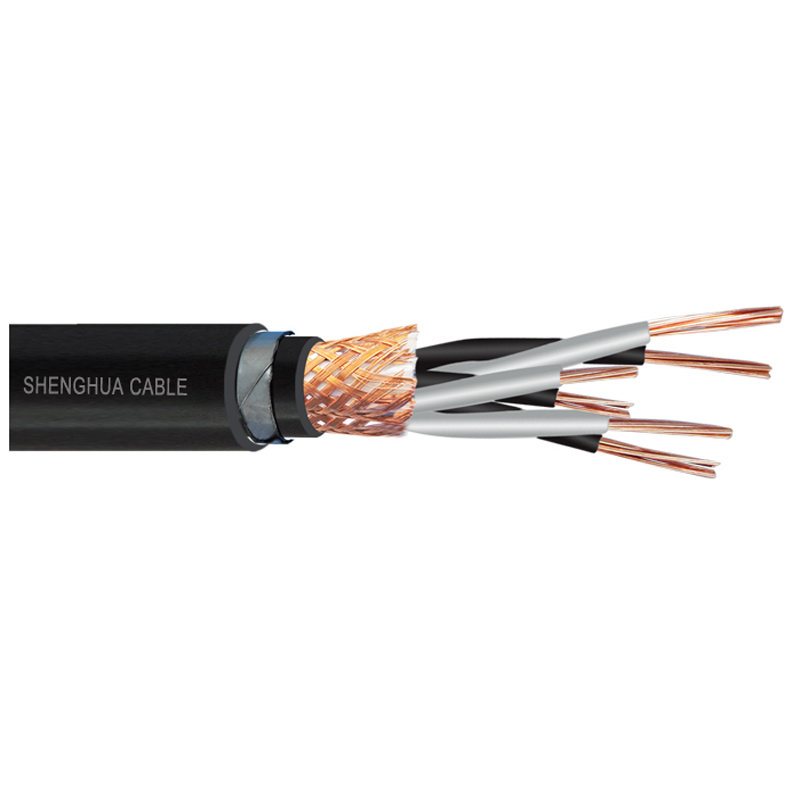

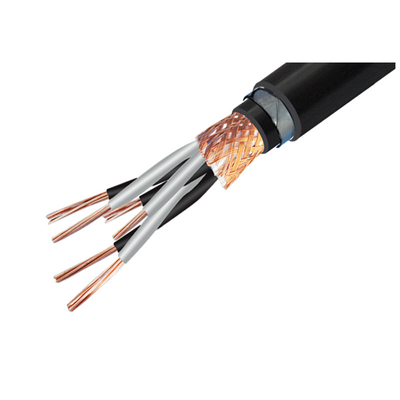

Instrumentation Cable ZR-DJYPVP-300/500V 12x2x1.5 mm2

1.Solid Copper Conductor (class1).
2.PE Insulation.
3.Copper Wire braid Individual screen.
4..Copper Wire braid Overall screen.
5.Flame-retardant PVC outer sheath.
as per IEC 60332-3:24  Cat C


Construction
Model No.: ZC-DJYPVP-300/500V  (Sqmm ) 1x2x1.0 2x2x1.0 3x2x1.0 4x2x1.0 5x2x1.0 1x2x1.5 2x2x1.5 1x3x1.5 2x3x1.5 3x3x1.5 4x3x1.5
1 Conductor
    Material Solid Conductor Stranded Conductor Solid Conductor
    Type Class 1 Class 2 Class 1
    No./Diameter before stranded 1/1.13mm 1/1.13mm 1/1.13mm 1/1.13mm 1/1.13mm 7/0.52mm 7/0.52mm 1/1.38mm 1/1.38mm 1/1.38mm 1/1.38mm
2 Insulation
    Material PE
    COLOR
    Thickness 0.6mm 0.6mm 0.6mm 0.6mm 0.6mm 0.7mm 0.7mm 0.7mm 0.7mm 0.7mm 0.7mm
    Minimum Insulation Thickness 0.44mm 0.44mm 0.44mm 0.44mm 0.44mm 0.53mm 0.53mm 0.53mm 0.53mm 0.53mm 0.53mm
3 Copper Wire Braid Individual Screen
    Material / Copper Wire Copper Wire Copper Wire Copper Wire Copper Wire Copper Wire / Copper Wire Copper Wire Copper Wire
    Shielding Braid Density / 80% Dia
0.12mm		 80% Dia
0.12mm		 80% Dia
0.12mm		 80% Dia
0.12mm		 80% Dia
0.12mm		 80% Dia
0.12mm		 / 80% Dia
0.12mm		 80% Dia
0.12mm		 80% Dia
0.12mm
4 Copper Wire Braid Overall Screen
    Material Copper Wire
    Shielding Braid Density 80% Dia 0.12mm
5 Overall Sheath
    Material Flame-retardant PVC(BLACK)
    Thickness 1.2mm 1.2mm 1.2mm 1.2mm 1.3mm 1.2mm 1.2mm 1.2mm 1.3mm 1.3mm 1.3mm
    Approx Overall Diameter 7.8mm 13.7mm 14.3mm 16mm 17.7mm 9.0mm 16.2mm 9.1mm 16.6mm 17.7mm 19.4mm
Technical Data & Packing
1 Rated voltage   300/500V 300/500V 300/500V 300/500V 300/500V 300/500V 300/500V 300/500V 300/500V 300/500V 300/500V
2 Testing Voltage(5 minutes) 1.5kV 1.5kV 1.5kV 1.5kV 1.5kV 1.5kV 1.5kV 1.5kV 1.5kV 1.5kV 1.5kV
3 Max. Resistance of Conductor D.C at 20ºC 18.1 Ω/km 18.1 Ω/km 18.1 Ω/km 18.1 Ω/km 18.1 Ω/km 12.1 Ω/km 12.1 Ω/km 12.1 Ω/km 12.1 Ω/km 12.1 Ω/km 12.1 Ω/km
4 Approx Weight 98kg/km 240kg/km 300kg/km 372kg/km 486kg/km 119kg/km 296kg/km 165kg/km 423kg/km 523kg/km 802kg/km
5 Working Temp. of conductor  70ºC 70ºC 70ºC 70ºC 70ºC 70ºC 70ºC 70ºC 70ºC 70ºC 70ºC
6 Short circuit 5s of conductor(max) 160ºC 160ºC 160ºC 160ºC 160ºC 160ºC 160ºC 160ºC 160ºC 160ºC 160ºC
7 Min.Installation temp >0ºC >0ºC >0ºC >0ºC >0ºC >0ºC >0ºC >0ºC >0ºC >0ºC >0ºC

Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2 0 Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2 1 Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2 2 Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2 3
