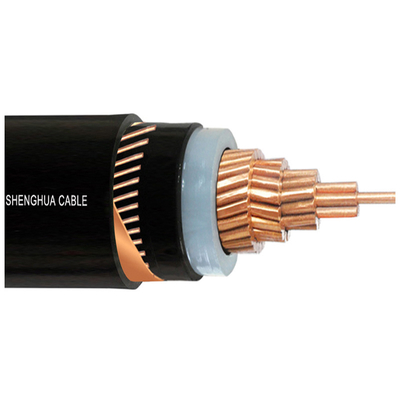

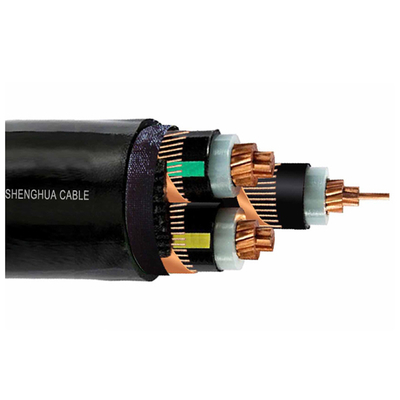

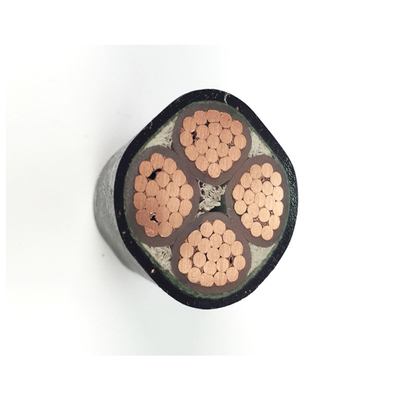

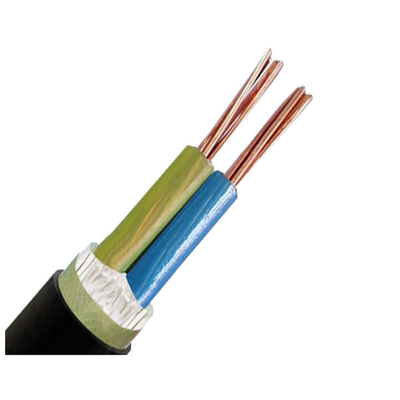

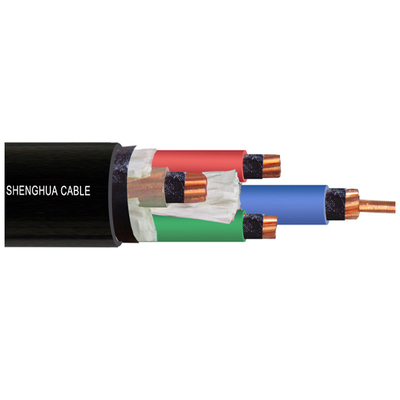

XLPE Insulated Armoured Electric Power Cable Low Voltage Middle Voltage 0.6/1/8.7/15/21/35kv Fire Resistant Lshf

XLPE Insulated Armoured Electric Power Cable Low Voltage Middle Voltage 0.6/1/8.7/15/21/35kv Fire Resistant Lshf
XLPE Insulated Armoured Electric Power Cable Low Voltage Middle Voltage 0.6/1/8.7/15/21/35kv Fire Resistant Lshf XLPE Insulated Armoured Electric Power Cable Low Voltage Middle Voltage 0.6/1/8.7/15/21/35kv Fire Resistant Lshf XLPE Insulated Armoured Electric Power Cable Low Voltage Middle Voltage 0.6/1/8.7/15/21/35kv Fire Resistant Lshf XLPE Insulated Armoured Electric Power Cable Low Voltage Middle Voltage 0.6/1/8.7/15/21/35kv Fire Resistant Lshf XLPE Insulated Armoured Electric Power Cable Low Voltage Middle Voltage 0.6/1/8.7/15/21/35kv Fire Resistant Lshf

Large Image :  XLPE Insulated Armoured Electric Power Cable Low Voltage Middle Voltage 0.6/1/8.7/15/21/35kv Fire Resistant Lshf

Product Details:
Certification: ISO, CCC, CE, RoHS
Contact Now

XLPE Insulated Armoured Electric Power Cable Low Voltage Middle Voltage 0.6/1/8.7/15/21/35kv Fire Resistant Lshf

Description
Model NO.: YJV Current: DC & AC
Insulation Material: XLPE Sheath Material: PVC
Material Shape: Round Wire Wire Core Material: Red Copper Wire
Model: YJV Brand: Xinxin
Sheath Color: Black Rate Voltage: 0.6/1kv
Testing Voltage 5 Minutes: 3.5kv Working Temp. Of Conductor: 90ºC
Min.Installation Temp: >0ºC Transport Package: Wooden Steel Drum
Specification: 1*2.5sqmm-5*300sqmm Trademark: Shenghua
Origin: China HS Code: 85446012
Supply Ability: 10km/Day Customization: Available
Application: Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer Voltage: Low And Medium Voltage Cable

Key Words:YJV XLPE Power Cable

Product Name:YJV XLPE insulation PVC Sheathed Power Cable MV

Description:
CU/XLPE/STA/PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA
Constructions
Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation: XLPE/A
Inner Covering: PVC
Sheath: PVC type ST2 to IEC 60502, black
Note: Insulation color as per standards or customer requirement

Applications
Used for Power transmission and distribution line with voltage rated at 35kv and below. Compared with PVC Insulated Power cable, XLPE power cable boasts not only characteristics of excellent electricity, mechanism , heat and aging- resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long term working.
For Layling indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
XLPE Insulated Armoured Electric Power Cable Low Voltage Middle Voltage 0.6/1/8.7/15/21/35kv Fire Resistant Lshf 0
Technical data
Rated voltage: 2-35 kV
Max. Conductor Temp.: normal (90ºC), short circuit no more than 5 s (160ºC when section-area below 300mm2, 140ºC when section-area above 300mm2)
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0ºC
Min. Bending Radius: single core cable 20(d+D)±5%
                    Multi-core cable 15(d+D)±5%
XLPE Insulated Armoured Electric Power Cable Low Voltage Middle Voltage 0.6/1/8.7/15/21/35kv Fire Resistant Lshf 1

Certificates
CE, RoHS, CCC, KEMA and more others at request
XLPE Insulated Armoured Electric Power Cable Low Voltage Middle Voltage 0.6/1/8.7/15/21/35kv Fire Resistant Lshf 2
