Different Sizes Armored Cables for Distribution Worldwide

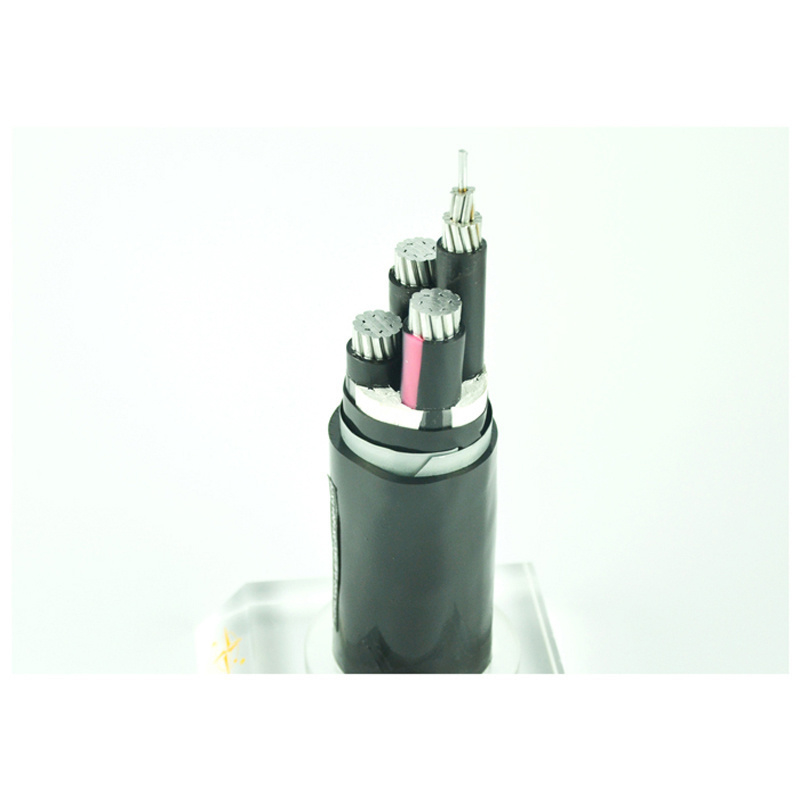

Large Image : Different Sizes Armored Cables for Distribution Worldwide

Product Details:

Certification:	ISO, CCC, CE, RoHS

Contact Now

Different Sizes Armored Cables for Distribution Worldwide

Description

Model NO.:	YJV22 YJV32 YJV72	Current:	DC & AC
Insulation Material:	XLPE	Sheath Material:	PVC
Material Shape:	Round Wire	Wire Core Material:	Bare Copper Wire
Model:	Yjv22 Yjv32	Brand:	Xinxin
Color:	Black/White	MOQ:	500m
Conductor:	Copper/Aluminum	Insulation:	XLPE
Sheath:	PVC	Armor:	Steel Wire/Tape
Transport Package:	Wooden Steel Drum	Specification:	1.11.10.98m
Trademark:	Shanghai Shenghua Cable Group	Origin:	Shanghai, China
HS Code:	8544492100	Supply Ability:	100000

Description:
CU/XLPE/STA/PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA
0.6/1kV, suitable for underground laying

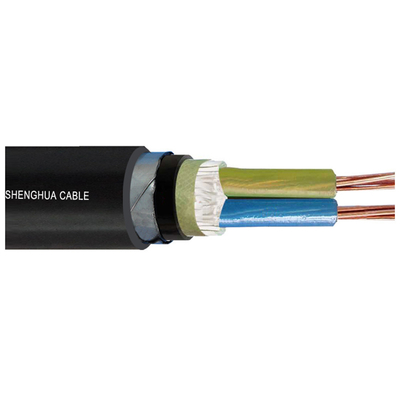

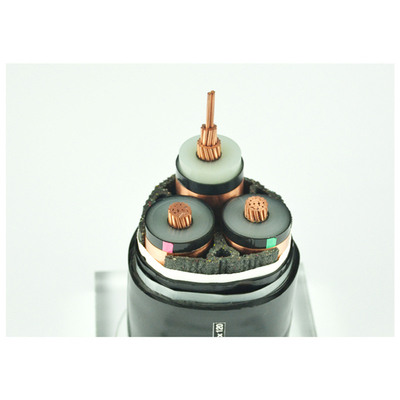

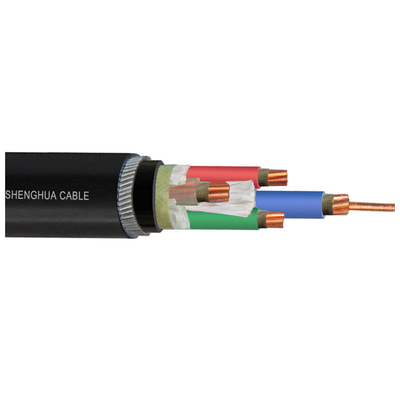

Constructions
Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation: XLPE/A
Inner Covering: PVC
Armoring: Steel Tape
Sheath: PVC type ST₂ to IEC 60502, black
Note: Insulation color as per standards or at request

Applications
Suitable for U/G laying, Able to bear external mechanical forces but large pulling forces.
Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (90ºC), short circuit no more than 5 s (160ºC when section-area below 300mm², 140ºC when section-area above 300mm²)
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0ºC
Min. Bending Radius: 15 *(cable O.D)
