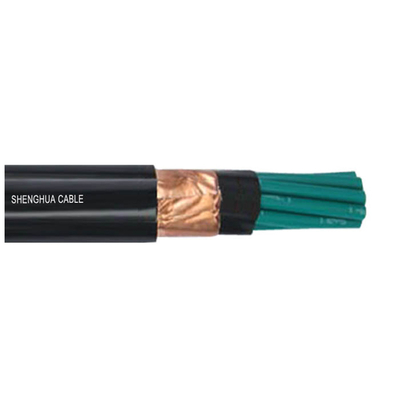

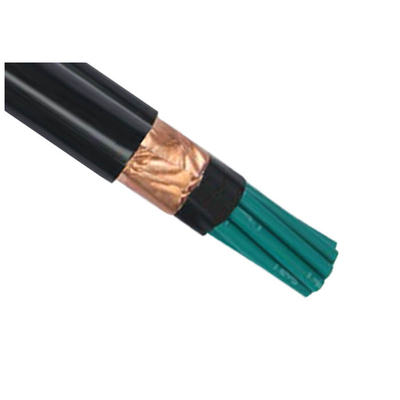

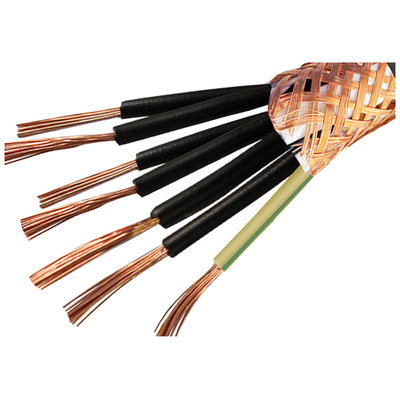

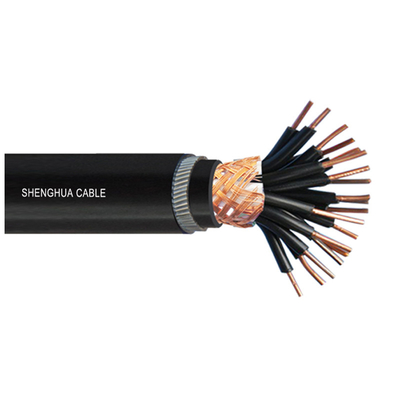

Control Cable Multi-Core Copper Wire Braid Screen Kvvrp-0.6/1kv 7X2.5 Sqmm

Control Cable Multi-Core Copper Wire Braid Screen Kvvrp-0.6/1kv 7X2.5 Sqmm
Control Cable Multi-Core Copper Wire Braid Screen Kvvrp-0.6/1kv 7X2.5 Sqmm Control Cable Multi-Core Copper Wire Braid Screen Kvvrp-0.6/1kv 7X2.5 Sqmm Control Cable Multi-Core Copper Wire Braid Screen Kvvrp-0.6/1kv 7X2.5 Sqmm Control Cable Multi-Core Copper Wire Braid Screen Kvvrp-0.6/1kv 7X2.5 Sqmm Control Cable Multi-Core Copper Wire Braid Screen Kvvrp-0.6/1kv 7X2.5 Sqmm Control Cable Multi-Core Copper Wire Braid Screen Kvvrp-0.6/1kv 7X2.5 Sqmm

Large Image :  Control Cable Multi-Core Copper Wire Braid Screen Kvvrp-0.6/1kv 7X2.5 Sqmm

Product Details:
Certification: ISO9001, CE, CCC, RoHS, VDE, Kema
Contact Now

Control Cable Multi-Core Copper Wire Braid Screen Kvvrp-0.6/1kv 7X2.5 Sqmm

Description
Model NO.: KVVRP-0.6/1KV 7x2.5 SQMM Application: Power Station
Conductor Material: Copper Sheath Material: PVC
Insulation Material: PVC Material Shape: Round Wire
Range Of Application: Power Station Brand: Shanghai Shenghua
Conductor: Flexible Copper Wire Insulation: PVC
Shield: Copper Wire Braiding Outer Sheath: PVC
Standard: IEC60227 Rated Voltage: 600/1000V
Certificate: Kema,TUV Bending Radius: 20X Cable O.D
Test Voltage: 3.5kv/5min Insulation Color: White With No.1,2,3...
Jacket Color: Black UV: Yes
Oil-Resistant: Yes Sample: Free
Transport Package: 2000m/Drum Specification: 7x2.5SQMM
Trademark: SHAN CABLE Origin: Shanghai China
HS Code: 8544492100 Supply Ability: 9853km/Week

Control Cable Multi-Core Copper Wire Braid Screen KVVRP-0.6/1KV 7x2.5 SQMM
Constructions
Conductor: Plain circular flexible copper conductor, conform to IEC 60228 class 5
Insulation: PVC/A
Fillers: PVC

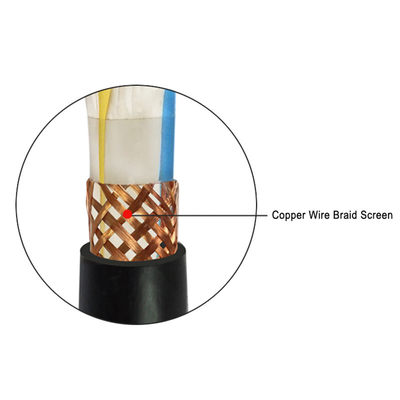

Shield: Plain circular flexible copper wire braiding
Sheath: PVC
Note: Insulation color as per standards or at request



Applications
Suitable for use in power distribution lines or fixed installations or signal control with rated voltage up to 300/500kV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.

Standards
China: GB/T 5023.2-2007

Technical data
Rated voltage: 300 / 500 kV
Max. Conductor Temp.: normal (70ºC), short circuit no more than 5 s (160ºC when section-area below 300mm2, 140ºC when section-area above 300mm2)
Min. Ambient Temp.: 0ºC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D

Certificates
CE, RoHS, CCC, KEMA and more others at request


Specifications

2 Cores
Nom. cross-section of conductor Max. Diameter of stranded Wire Insulation Thickness Copper wire diameter of shield Sheath Thickness Approx. O.D.
mm
 		 Max. D.C Resistance of Conductor Min.Insulation Resistant at 70ºC
mm2 mm mm mm  mm Max. Min. (20 ºC )    Ω /km MΩ •km
1 × 0.08 0.13 0.4 0.10 0.4 2.4 2.9 247 0.018
1 × 0.5 0.21 0.5 0.10 0.4 3.1 3.8 39.0 0.012
1 ×1.0 0.21 0.6 0.10 0.6 4.1 4.9 19.5 0.010
1 ×1.5 0.26 0.6 0.10 0.6 4.3 5.2 13.3 0.009
1 ×2.5 0.26 0.7 0.15 0.6 4.9 6.0 7.98 0.008
2 × 0.08 0.13 0.4 0.1 0.4 3.2 4.2 247 0.018
2 × 0.3 0.16 0.5 0.15 0.6 4.8 6.2 69.2 0.014
2 × 0.4 0.16 0.5 0.15 0.6 5.1 6.6 48.2 0.013
2 × 0.5 0.21 0.5 0.15 0.6 5.3 6.8 39.0 0.012
2 × 0.75 0.21 0.5 0.15 0.6 5.8 7.4 26.0 0.010
2 × 1.0 0.21 0.6 0.15 0.6 6.4 8.2 19.5 0.010
2 × 1.5 0.26 0.6 0.15 0.8 7.3 9.2 13.3 0.009

Construction
  Quotation No. 9 10 11
Model No.: Cu/PVC/Fr-PVC-SB-  0.6/1kV  CL5( Sqmm) 2x1.0 3x1.0 3x1.5
1 Conductor
    Material Flexible Copper Conductor
    Type Class 5
    No./Diameter before stranded 32/0.2 mm 32/0.2 mm 30/0.25mm
2 Insulation
    Material PVC
    COLOR White+Number
    Thickness 0.8mm 0.8mm 0.8mm
    Minimum Insulation Thickness 0.62mm 0.62mm 0.62mm
3 Copper Wire Braid Overall Screen
    Material Copper Wire
    Shielding Braid Density 80% Dia 0.12mm
4 Overall Sheath
    Material Flame-retardant  PVC (BLACK)
    Thickness 1.8mm 1.8mm 1.8mm
    Approx Overall Diameter 10.6 11 11.8
Technical Data & Packing
1 Rated voltage   0.6/1 KV
2 Testing Voltage(5 minutes) 3.5kV
3 Max. Resistance of Conductor D.C at 20ºC   19.5 Ω/km 19.5 Ω/km 13.3 Ω/km
4 Approx Weight 135kg/km 156kg/km 174 kg/km
5 Working Temp. of conductor  70ºC
6 Short circuit 5s of conductor(max) 160ºC
7 Min.Installation temp >0ºC


Control Cable Multi-Core Copper Wire Braid Screen Kvvrp-0.6/1kv 7X2.5 Sqmm 0
