Smooth Delivery for Kvv 450/750V with Cheap Price

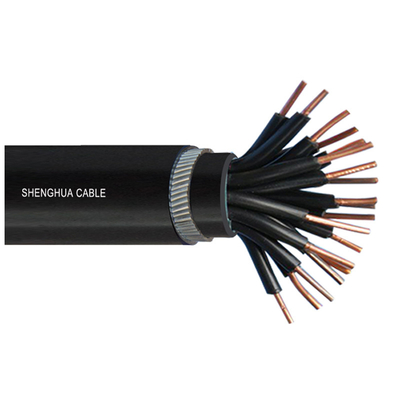

Large Image : Smooth Delivery for Kvv 450/750V with Cheap Price

Product Details:

Certification:	ISO, CCC, CE, RoHS

Contact Now

Smooth Delivery for Kvv 450/750V with Cheap Price

Description

Model NO.:	KVV KVVP KVVRP	Current:	DC & AC
Insulation Material:	PVC	Sheath Material:	PVC
Material Shape:	Round Wire	Wire Core Material:	Bare Copper Wire
Model:	KVVP	Brand:	Xinxin
Color:	Black/White	MOQ:	500m
Conductor:	Copper/Aluminum	Insulation:	PVC
Sheath:	PVC	Transport Package:	Wooden Steel Drum
Specification:	1.11.10.98m	Trademark:	Shanghai Shenghua Cable Group
Origin:	Shanghai, China	HS Code:	8544492100
Supply Ability:	100000

1.Standards:
Manufacture according to GB/T 9330,IEC 60502-1

2. Cable structure:Structure:
2.1 Rated voltage: 450/750V
2.2 Conductor: Copper wire /tinned-copper wire, Class1, Class2, Class5
2.3 Insulation: PVC /PE /XLPE
2.4 Cabling: multicore stranded
2.5 Shield(if required): Copper tape or CWS or Al-plastic tape with drain wire
2.6 Inner sheath (applicable if there is an armoured layer): PVC/PE
2.7 Armour layer: Galvanized steel wire / Steel tape
2.8 Outersheath: PVC/PE/LSHF
2.9 Other characteristics: Oil resistant, Flame retardant, Anti-corrosion, UV,etc.

3.APPLICATION:
These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Suitable fordirect burial applications.

4.Physical and Thermal Properties
Conductor: Annealed copper solid Class 1 or plain copper stranded Class 2 or flexible soft stranded copper class 5
Voltage Rating: 450V/750V
Test Voltage:2500V
Temperature range During operation (fixed state): -20°C - +70°C(PVC PE),-20°C - +90°C(XLPE)
Temperature range During Installation (Mobile state): -5°C - +40°C
Minimum bending radius: 10 X Overall Diameter
