Flexible Multicore Copper Conductor 450/750V Shielded PVC Insulated LSZH Control Cable

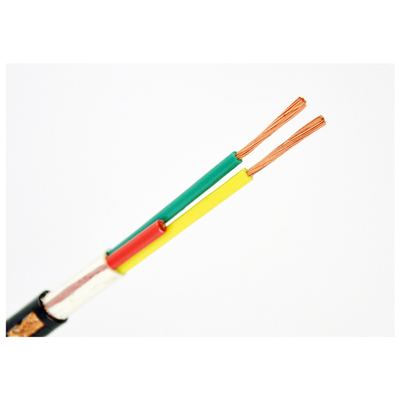

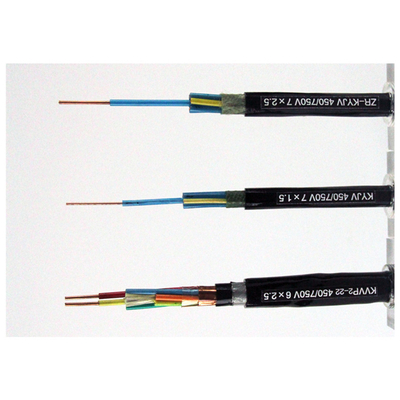

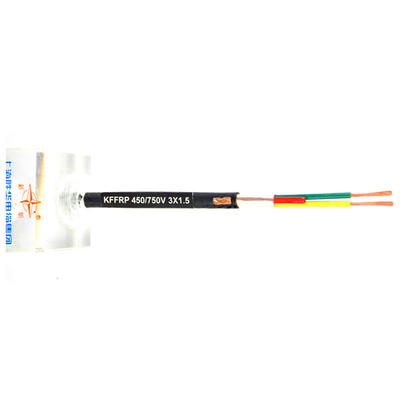

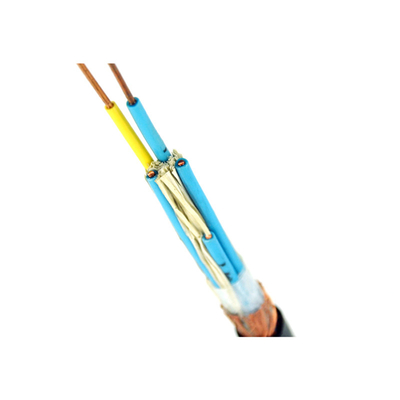

Large Image : Flexible Multicore Copper Conductor 450/750V Shielded PVC Insulated LSZH Control Cable

Product Details:

Certification:	ISO9001, CE, CCC, RoHS

Contact Now

Flexible Multicore Copper Conductor 450/750V Shielded PVC Insulated LSZH Control Cable

Description

Model NO.:	KYJY KYJV KVV	Application:	Overhead, Heating, Underground, Instrumentation
Conductor Material:	Copper	Sheath Material:	PVC
Insulation Material:	XLPE	Material Shape:	Round Wire
Range Of Application:	LSOH	Brand:	Xinxin
Rated Voltage:	450/750V	Testing Voltage 5 Minutes:	2.5kv
Working Temp. Of Conductor:	90ºC	Min.Installation Temp:	>0ºC
Type Of Packing:	Wooden Steel Drum	Transport Package:	Wooden Steel Drum
Specification:	Copper/XLPE/PVC	Origin:	China
HS Code:	85444921	Supply Ability:	10km/Day

LSZH Instrument Cables Electric control cable 450/750V Flexible Copper Conductor 0.75mm²1.0mm² 1.5mm² 2.5mm² Shielded PVC insulated

1.Standards:
Manufacture according to GB/T 9330,IEC 60502-1

2. Cable structure:Structure:
2.1 Rated voltage: 450/750V
2.2 Conductor: Copper wire /tinned-copper wire, Class1, Class2, Class5
2.3 Insulation: PVC /PE /XLPE
2.4 Cabling: multicore stranded
2.5 Shield(if required): Copper tape or CWS or Al-plastic tape with drain wire
2.6 Inner sheath (applicable if there is an armoured layer): PVC/PE
2.7 Armour layer: Galvanized steel wire / Steel tape
2.8 Outersheath: PVC/PE/LSHF
2.9 Other characteristics: Oil resistant, Flame retardant, Anti-corrosion, UV,etc.

3.APPLICATION:
These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Suitable fordirect burial applications.

4.Physical and Thermal Properties
Conductor: Annealed copper solid Class 1 or plain copper stranded Class 2 or flexible soft stranded copper class 5
Voltage Rating: 450V/750V
Test Voltage:2500V
Temperature range During operation (fixed state): -20°C - +70°C(PVC PE),-20°C - +90°C(XLPE)
Temperature range During Installation (Mobile state): -5°C - +40°C
Minimum bending radius: 10 X Overall Diameter
