Low Voltage PVC Insulation PVC Sheath Control Cable

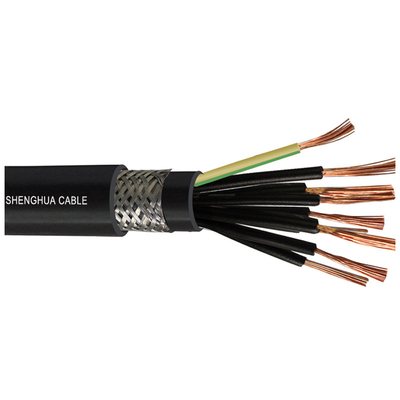

Large Image : Low Voltage PVC Insulation PVC Sheath Control Cable

Product Details:

Certification:	ISO, CCC, CE, RoHS

Contact Now

Low Voltage PVC Insulation PVC Sheath Control Cable

Description

Model NO.:	KVV KVVP KVVR	Current:	DC & AC
Insulation Material:	PVC	Sheath Material:	PVC Insulation
Material Shape:	Round Wire	Wire Core Material:	Bare Copper Wire
Model:	KVVP	Brand:	Xinxin
Color:	Black/White/Green/Red	MOQ:	500m
Conductor:	Copper /Aluminum	Insulation:	PVC
Sheath:	PVC	Payment:	T/T L/C
Transport Package:	Wooden Steel Drum	Specification:	1.11.10.98m
Trademark:	Shanghai Shenghua Cable Group	Origin:	Shanghai, China
HS Code:	8544492100	Supply Ability:	100000

1.Standards:
Manufacture according to GB/T 9330,IEC 60502-1

2. Cable structure:Structure:
2.1 Rated voltage: 450/750V
2.2 Conductor: Copper wire /tinned-copper wire, Class1, Class2, Class5
2.3 Insulation: PVC /PE /XLPE
2.4 Cabling: multicore stranded

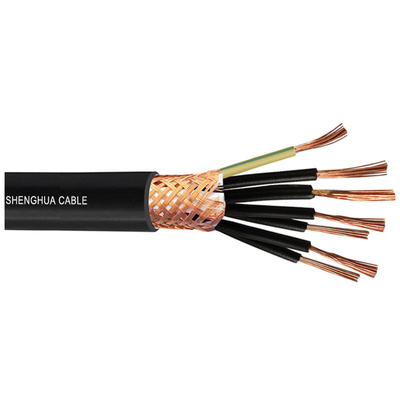

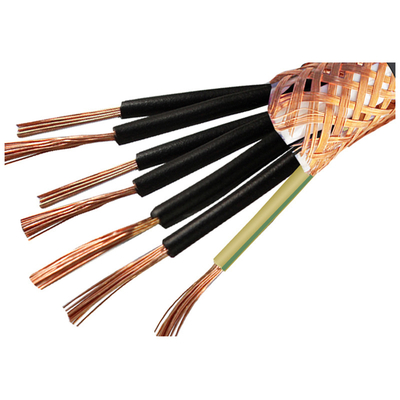

2.5 Shield(if required): Copper tape or CWS or Al-plastic tape with drain wire
2.6 Inner sheath (applicable if there is an armoured layer): PVC/PE

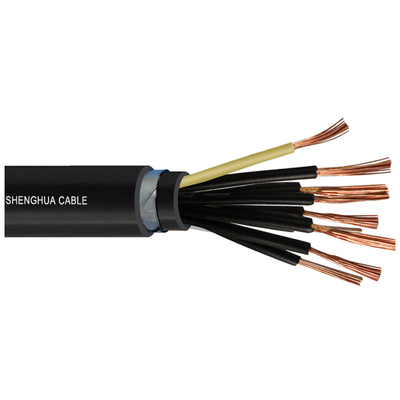

2.7 Armour layer: Galvanized steel wire / Steel tape
2.8 Outersheath: PVC/PE/LSHF
2.9 Other characteristics: Oil resistant, Flame retardant, Anti-corrosion, UV,etc.

3.APPLICATION:
These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Suitable fordirect burial applications.

4.Physical and Thermal Properties
Conductor: Annealed copper solid Class 1 or plain copper stranded Class 2 or flexible soft stranded copper class 5
Voltage Rating: 450V/750V
Test Voltage:2500V
Temperature range During operation (fixed state): -20°C - +70°C(PVC PE),-20°C - +90°C(XLPE)
Temperature range During Installation (Mobile state): -5°C - +40°C
Minimum bending radius: 10 X Overall Diameter
